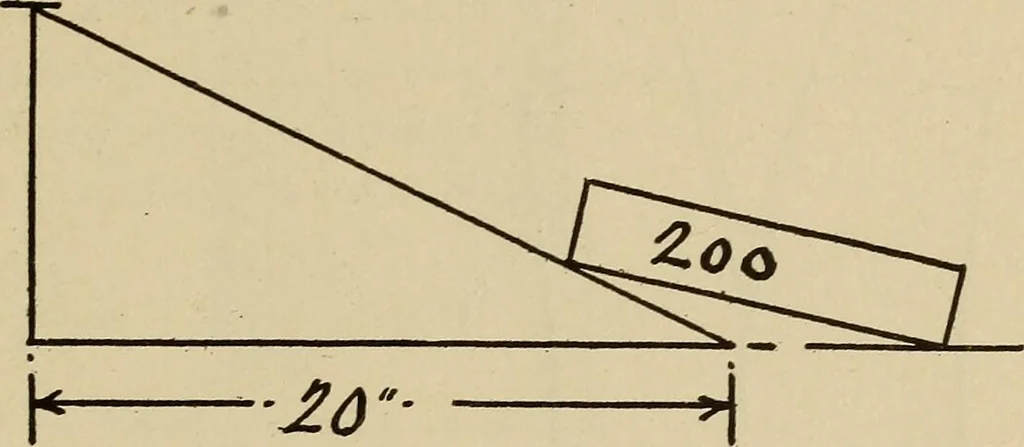

small space. Noaccurate estimate can be made of the work done bywedges as they are ordinarily used, but calculations workedout according to the following rules will give an approx-imate idea of the amount of work which may be performedby them. THE SIMPLE MACHINES 289 To Find the Power Rule.… … Fig. 101 200 X 3 ~~20 60020 30 lb. pressure Example. If a wedge 12 inches long and 3 inchesthick is employed to raise a weight of 1000 pounds, whatpressure must be exerted? P = 1000 X 3 3000 12 12 = 250 lb. Arts. To Find the Weight Rule. Multiply the power by the length of thewedge and divide by…
