Handbook of mechanical and electrical cost data, giving shipping weights, capacities, outputs, and net prices of machines and apparatus, and detailed costs of installation, maintenance, depreciation and operation, together with many principles and data relating to engineering economics (1918)
Gillette, Halbert Powers, 1869-, Dana, Richard Turner, 1876-1928, joint author · New York, McGraw-Hill · leaf 203

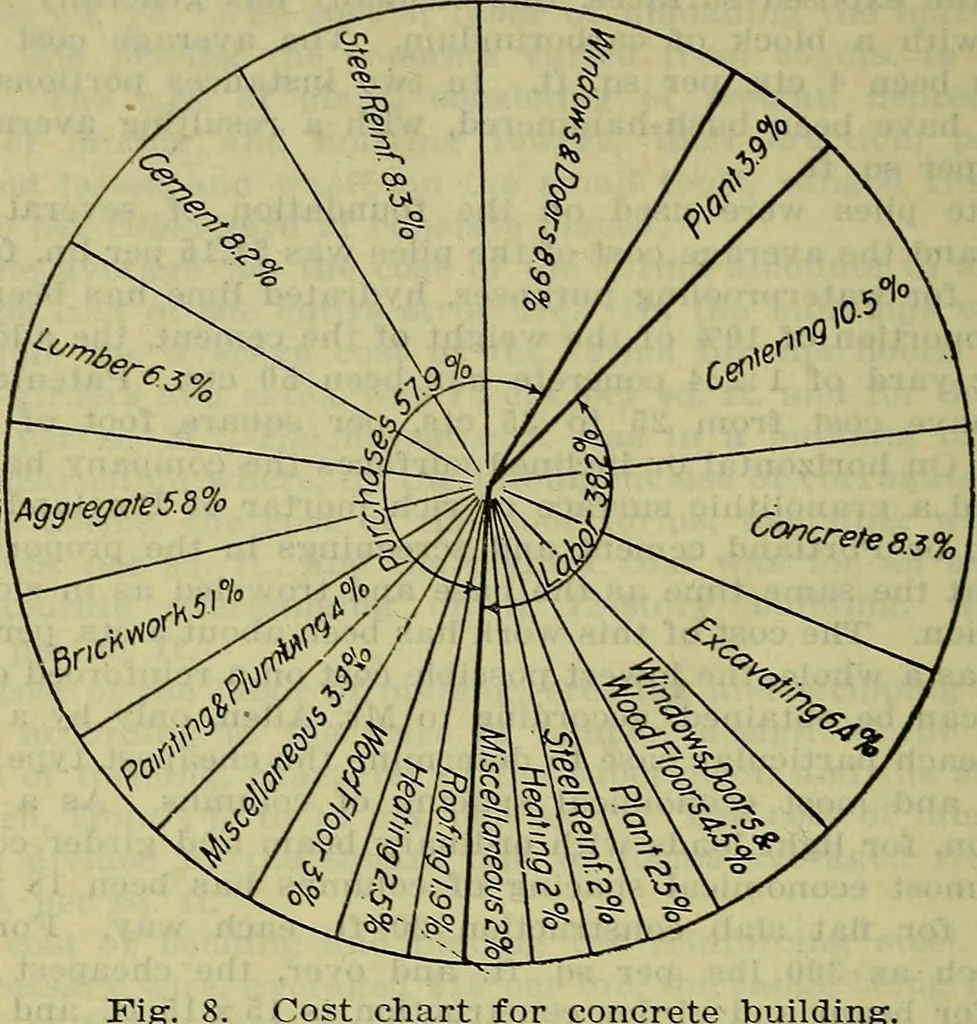

wo story factory, 100 x 100 ft., with 18 ft. clearance on thefirst floor and 12 ft. on the second. It is skeleton type of construc-tion, 16x16 ft. floor panels, and 6-in. curtain walls. Steel rodswere used for reinforcement with wire mesh in the slabs. A 1:2 :4mixture was used, the mortar finish on… … Fig, Cost chart for concrete building. The men were all green at the work. There were 847 cu. yds. ofconcrete, the cost of which was as folloAvs: Materials: Total. Cement at $2.05 per bbl $ 3,314 Sand and gravel at $1.25 per cu. yd 1,054 Reinforcement at $55 per ton 2,314 Lumber for forms at $27…
