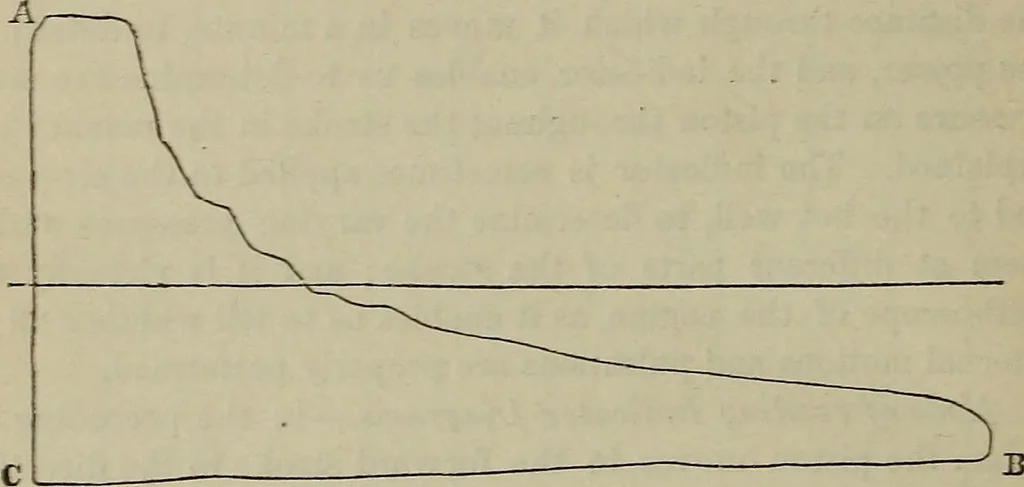

equently escapes into the atmosphere there is no longer thesame pressure on the spring of the indicator as before, and itspiston consequently descends. As, however, the steam cannotinstantaneously get away, the pressure does not descend quite solow as the atmospheric line. The eduction passage, it… … DIAGRAM IAKKS FROM STEAMER ISLAXD QUEEN. pleted, as appears by a reference to the compression corner,which shows that the back pressure begins to rise before thetermination of the stroke. The area comprehended between theatmospheric line and the bottom of the diagram shows theamount of back…
