Handbook of the steam-engine. Containing all the rules required for the right construction and management of engines of every class, with the easy arithmetical solution of those rules. Constituting a key to the 'Catechism of the steam-engine.' (1874)
Bourne, John · New York, D. Appleton · leaf 356

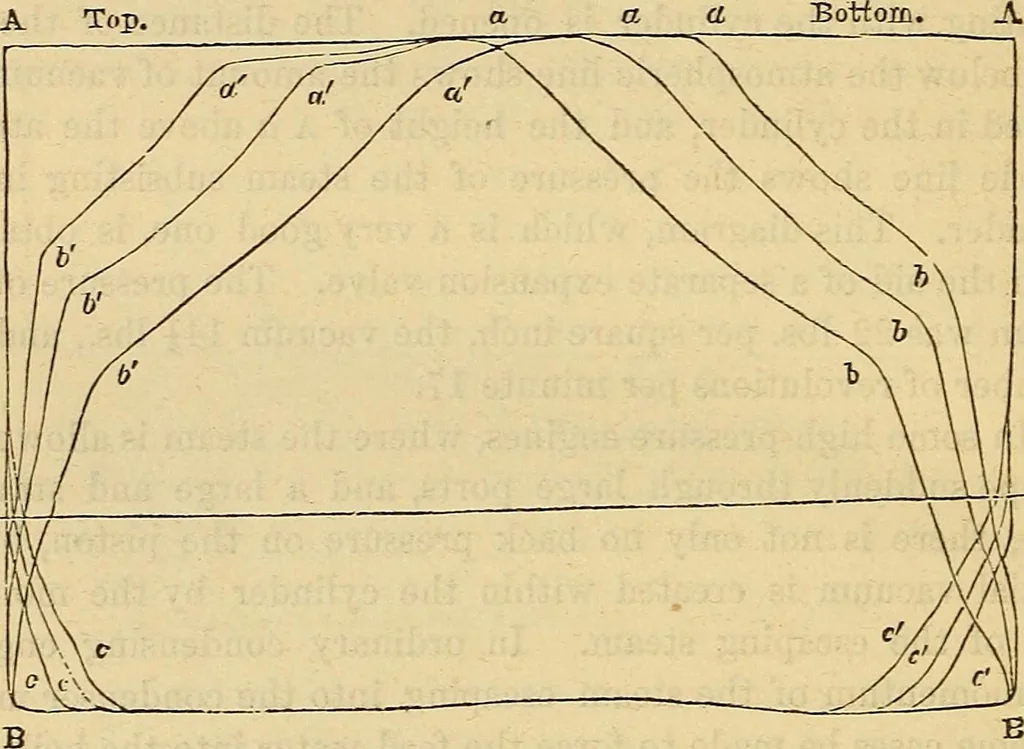

n takes place when the steam es-capes to the condenser; and under suitable arrangements theboiler might be fed by aid of the power resident in the eductingsteam, and iudeed the function of the air-pump might also beperformed bj the same agency. In fig. 8 we have an example of the diagrams taken… … DIAGRAMS TAKEN AT MOORINGS FROM HOLYHEAD PADDLE-STEAMER MDNSTER. from the bottom of the cylinder. There are three diagramstaken from each end with different degrees of expansion, a isthe admission corner of the three diagrams, taken from the topof the cylinder, and a a a are the three several…
Steam-engines
