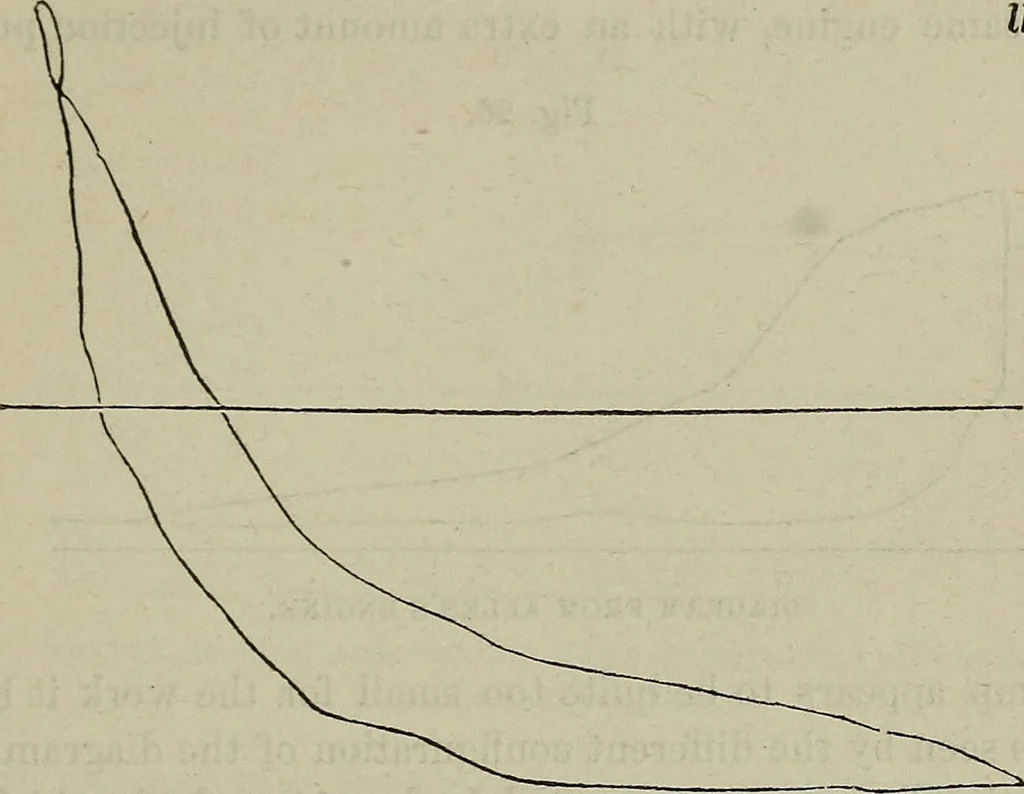

erminute was 38. Figs. 2G, 27, and 28 are diagrams taken by Eichards indi-cator from Allens engine, in the United States department ofthe International Exhibition of 1862. In this engine the diam-eter of the cylinder was 8 inches ; length of stroke, 24 inches;pressure of steam in boiler, 49 lbs.… … Ik -10 DIAGRAM FROM ENGINE OF PORTSMOUTH FLOATING BRIDGE.(ENGINE THBOTTLED BY LINK.) Sutherlands yacht Undine, a vessel fitted with two invertedangular engines, with cylinders 24 inches diameter and 15 inches Fig. 25.
