Handbook of the steam-engine. Containing all the rules required for the right construction and management of engines of every class, with the easy arithmetical solution of those rules. Constituting a key to the 'Catechism of the steam-engine.' (1874)
Bourne, John · New York, D. Appleton · leaf 374

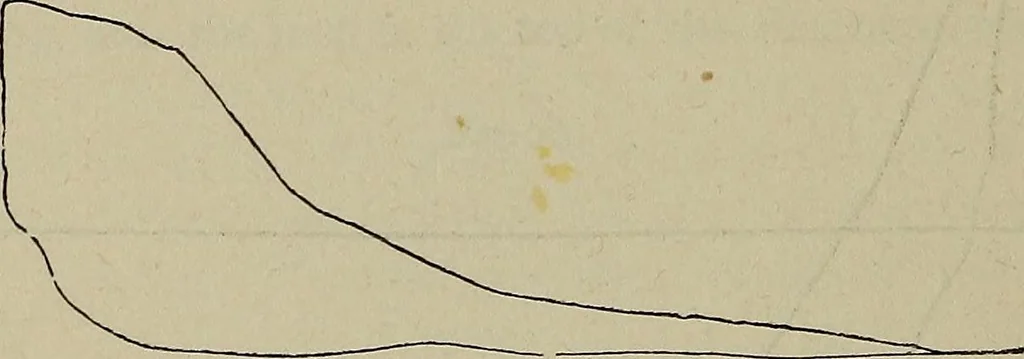

TIAGRAM FROM ENGINE OF PORTSMOUTH FLOATING BRIDGE.(ENGINE THEOTTLED BY THROTTLE-VALVE.) 358 POWER AND PERFORMANCE OF ENGINES. stroke. When this diagram was taken the ordinary amount olinjection was on, and the engine was working at moorings at72 strokes per minute. There was also an air-vessel on… … DIAGRAM FROM ALLENS ENGINE. The pump appears to he quite too small for the work it has todo, as is seen by the different configuration of the diagram fromthat of the diagrams represented in figs. 11 and 18, which arealso diagrams taken from air-pumps. In those diagrams, how-ever, the stroke of the…
