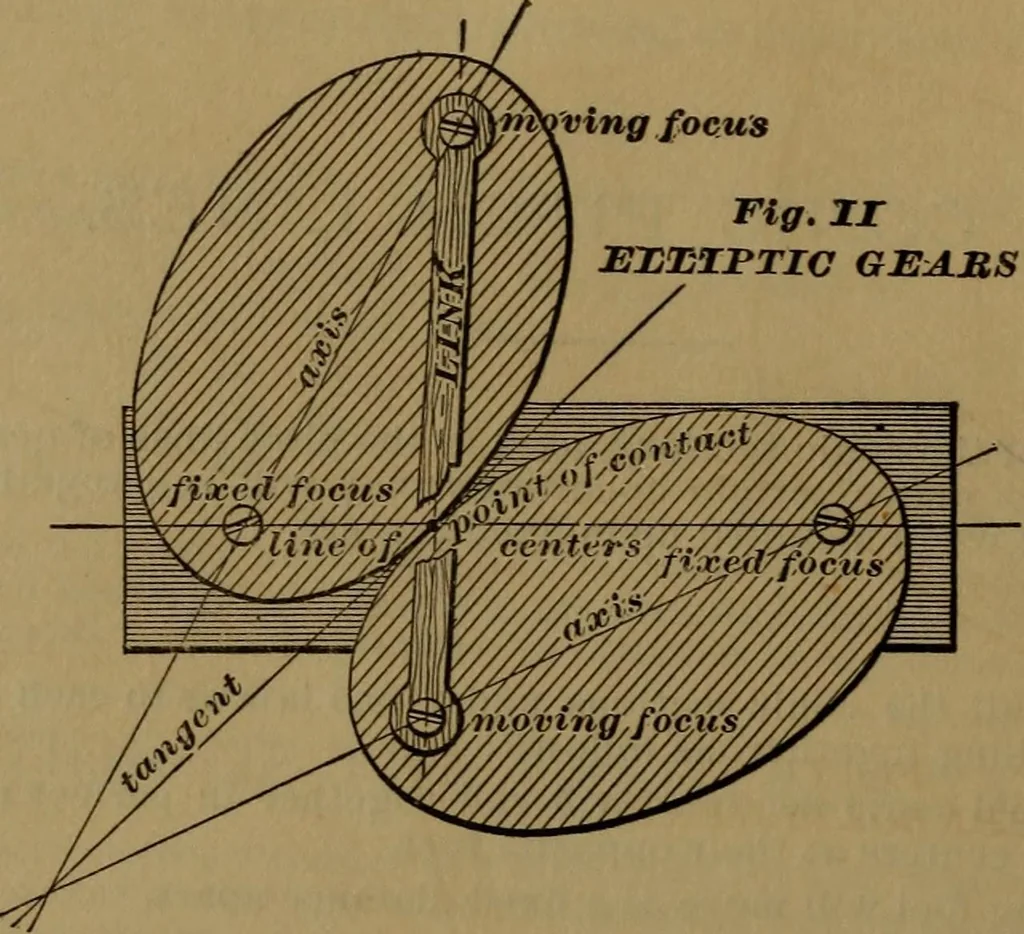

Fig. ICIBCVLAli GEABS Case I. — When the focal distance is infinitely small the curves are circles,as in figure I. The link is here simply a fixed bar connecting the two centers,for the two foci are combined in one point at the center. ving focus Fig. ITJEXTilPTIC GEABS … Case II. When the focal distance is finite and positive, the curves areellipses that will roll together if fixed on centers at their opposite foci, as inFig. II. The link is a moving bar connecting the two moving foci.
