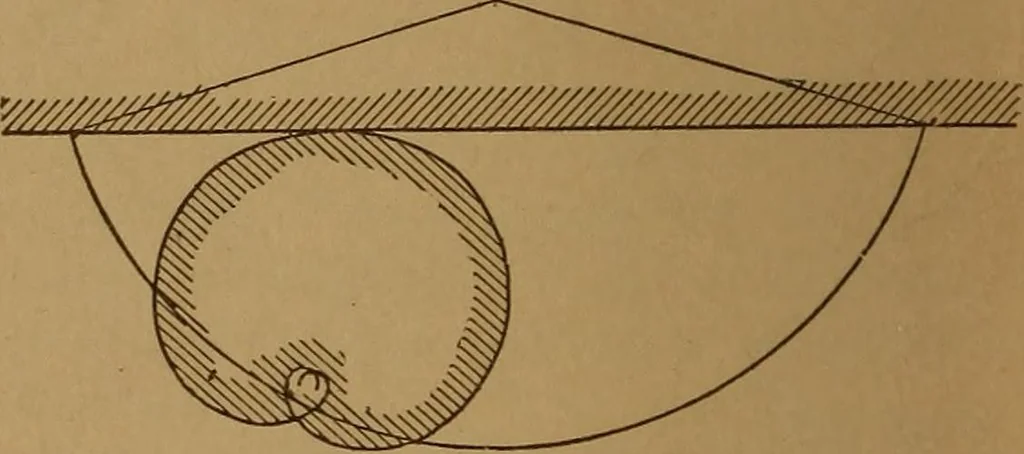

When the tracing point is any ordinarypoint on the roller, the curve traced will be atright angles to the pitch curve, but when itis the pole of a spiral it may cross at anangle. Fig. 22. Although rolled curves and odontoids areidentical, they cannot readily be consideredthe same, for the cycloid… … Holled segment Rolled curve The involute can be formed by rolling athe curvature of the pitch line 0 K, they are logarithmic spiral on the pitch line, but that the same for the same arc 0 K on all curves,and therefore all odontoids traced on thesame side of any number of different pitch-curves by…
