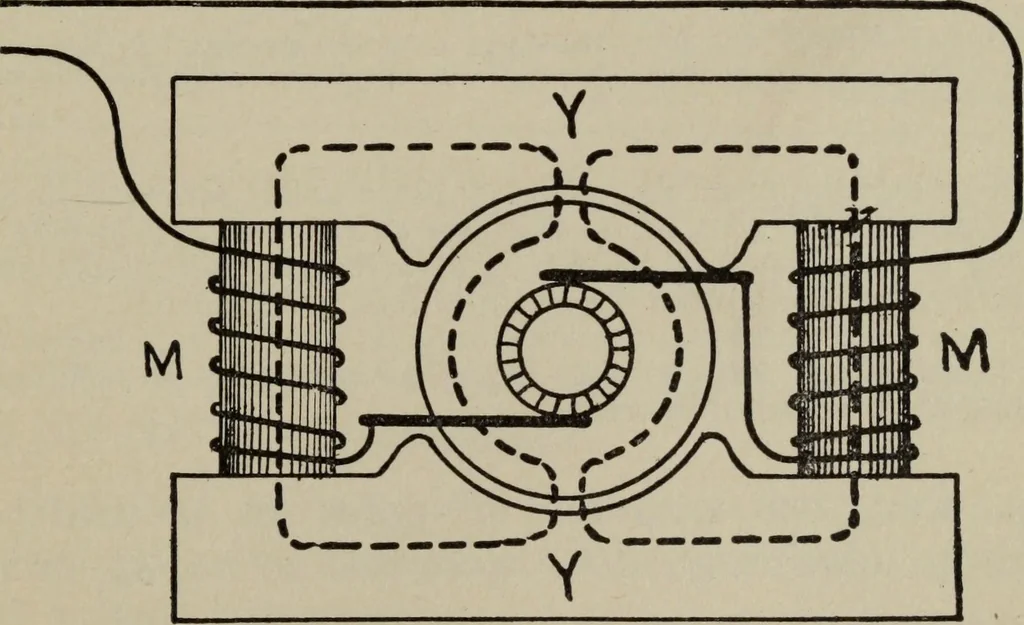

\2ztX-ji -^waillli! ■uaiiiiii!!![!■■««hi in inn ■•-■■I Kill■■mi 11.11 Iriil M rv Fig. 202.—Salient pole, bipolar field magnet with two ceils vvound around the cores. … Fig. 203.—Consequent pole bipolar field magnet with two coils on the cores. This is knownas the Manchester type in which the cores are connected at the ends by two yokes—so named from its original place of manufacture at Manchester, England. 202 HAWKINS ELECTRICITY Multi-Polar Field Magnets.—In the…
