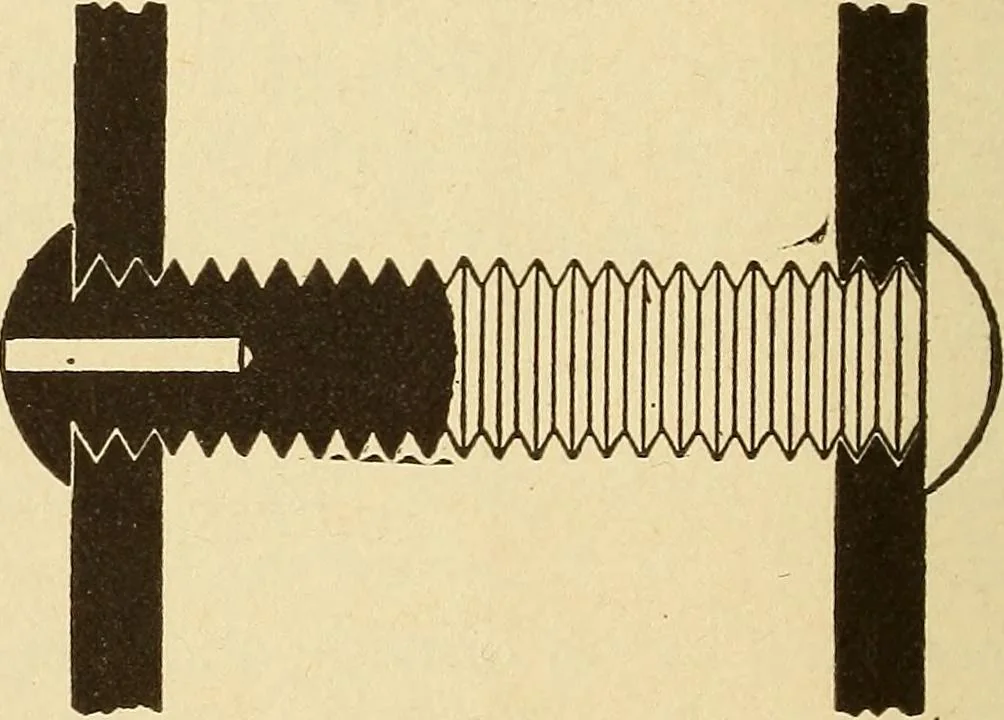

le length. They are screwed throughboth the outside and inside plates at intervals of from4 to 4^ in. apart center to center, thus securely bind-ing the plates together. The projecting ends of thesestay bolts are also riveted down onto the plates, thusfurther increasing their holding power. Owing… … Figure 7 tubular, or at least have a small hole drilled into oneend, as shown in Fig. 7, extending into the bolt a dis-tance greater than the thickness of the outside plate,so that if the bolt breaks which generally occurs nextthe outside plate, the water will escape through thefracture into the…
