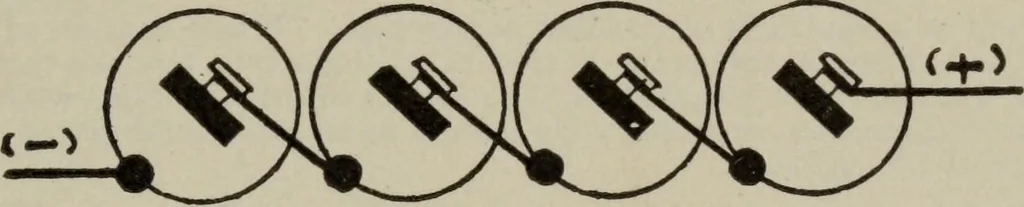

CELLS 65 the fact that while no action takes place when amalgamatedzinc is placed in dilute sulphuric acid at ordinary atmosphericpressure, the creation of a vacuum above the liquid causes arapid evolution of hydrogen, which, however, stops on the re-admission of the air. Amalgamating a zinc causes… … Fig. 72.—Diagram of a series battery connection: four cells are shown connected by thismethod. If the cell voltage be one and one-half volts, the pressure between the (+) and(—) terminals of the battery is equal to the product of the voltage of a single cell multipliedby the number of cells. For…
