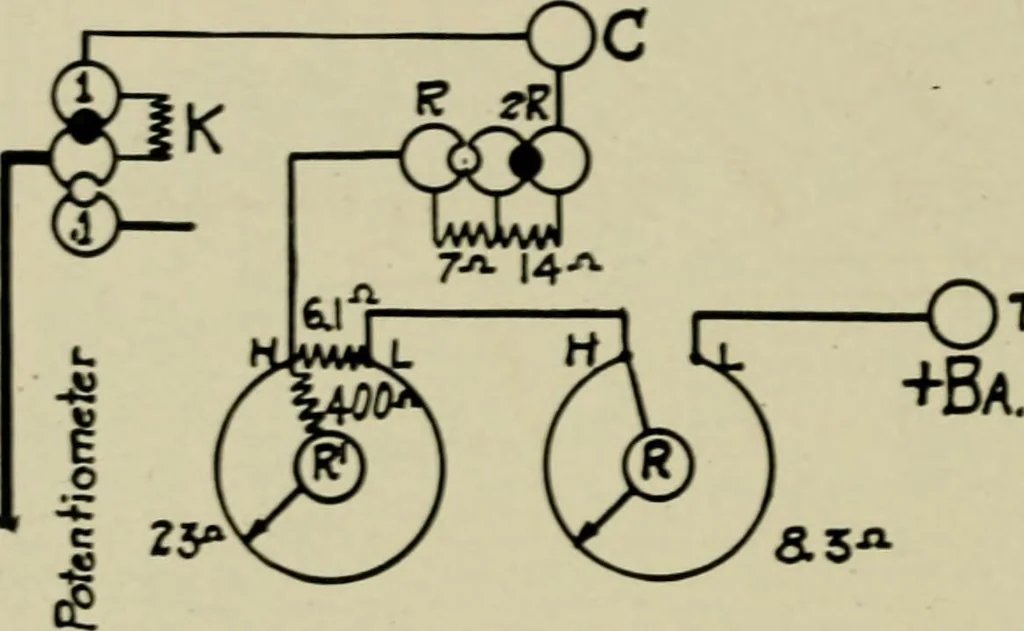

ng is 1.2135 volts. The resistances ofthe instrument are wound upon metal spools, and are therefore able to dis.sipate a com-paratively large amount of energy. This allows the potentiometer to be used for pressuremeasurements up to 16 volts without the use of a, volt box. 528 HAWKINS ELECTRICITY… … ^jTb Wtffry A 5^ Pig. 612.—Diagraxa showing actual connections in the rheostat of Leeds and Xorthrup potentio-meter. The figure corresponds to R of fig. 611. The rheostat is mounted in the end ofthe potentiometer as shown in fig. 610. Rough adjustment of the potentiometer ctirrentis made by means…
