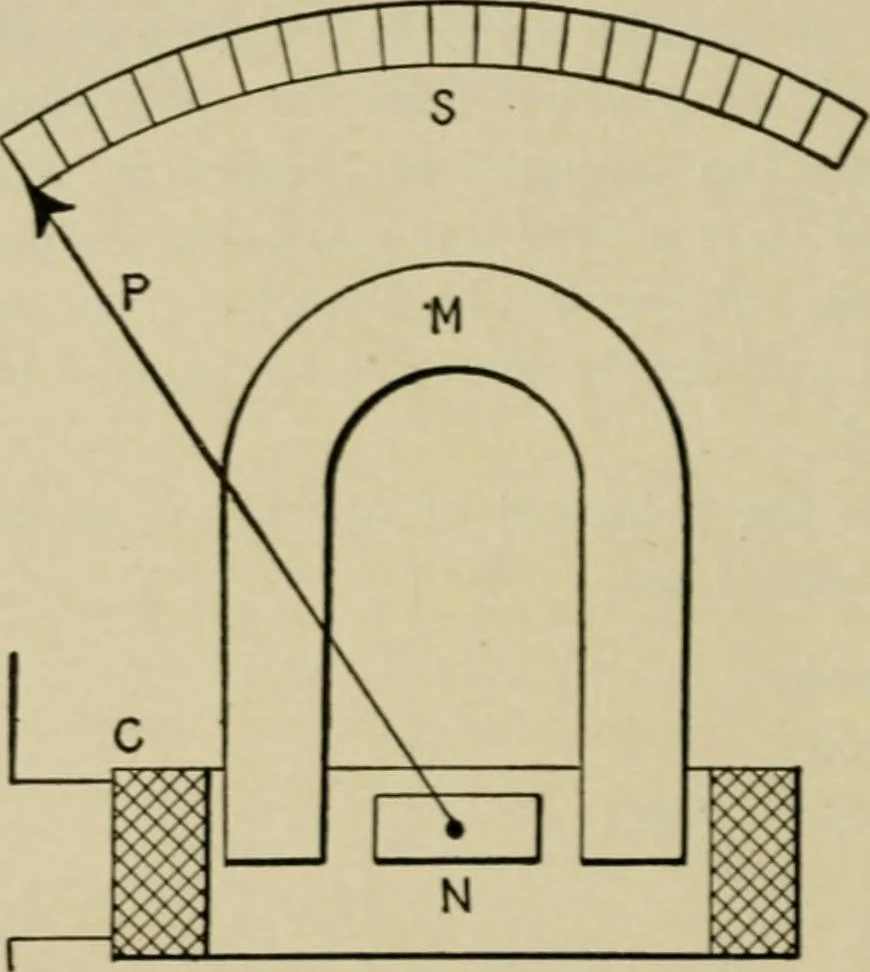

to read directly in thousandths of an ampere or thousandthsof a volt respectively. Ques. Describe the moving iron type instrument. Ans. The arrangement of the working parts are shown injg. 620. A soft iron needle N, is pivoted inside of a coil C, andis held out of line with the axis of the coil by… … Fig. 620. MoWng iron type instrument. The essential parts are: N, soft iron needle; C,coil; M, permanent magnet; P. pointer; S. scale. Current passing through the coil actson the needle, causing it to turn against the restraining force due to the influence of thepermanent magnet. magnetic lines of…
