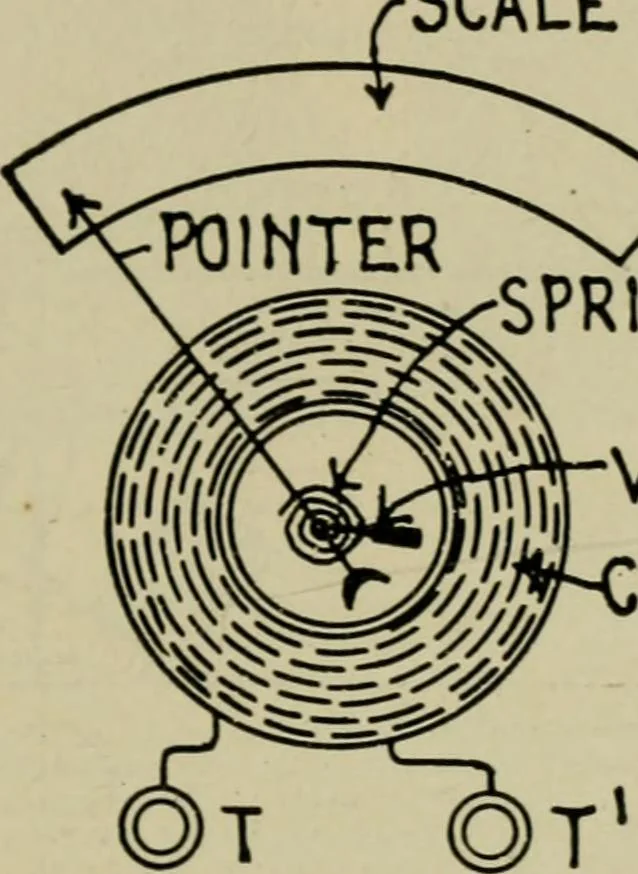

ward the position where it will con-duct the greatest number of magnetic lines of force against the restraining force of a springor equivalent. Ques. Describe an inclined coil instrument. Ans. As shown in fig. 635, a coil carrying the current, ismounted at an angle to a shaft to which is attached a… … 548 HAWKINS ELECTRICITY the iron tends to take up a position with its longest sides parallelto the lines of force, which results in the shaft being rotated andthe pointer moved on the dial, the amount of movement de-pending upon the strength of the current in the coil. The coils for large sizes are…
