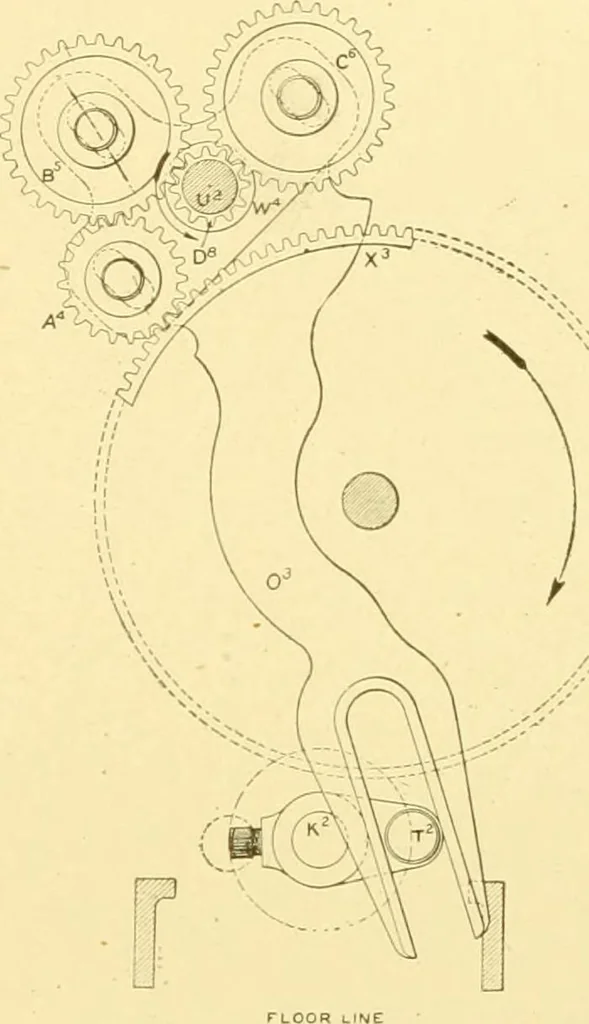

ack, I^ is drivenfrom the reverse shaft, K-, bythe gears, E^, F«, G^, H^ B^ j^and V^ The bevel, E^, is keyedto the reverse shaft but is free toslide in and out of gear with F\ When the machine is start-ed, the shipper rod, K-*, is movedin the direction of the arrow andthe dog, L*, comes in contact… … 1V2. Elevation Showing ReverseCiank and Gearing. an annular groove in which is a fork, Z, pivoted to a stand at Z^.The upright arm of the fork is connected with the stop motion latchby a rod, I. In starting the frame, the movement of the latch drawsthe gear, E, into contact with F This completes…
