Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 183

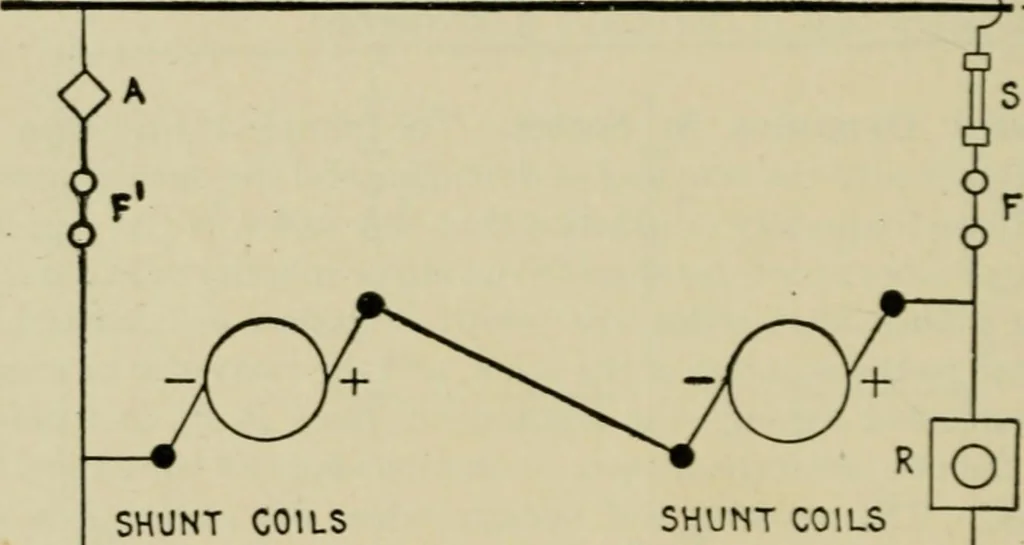

02 HAWKINS ELECTRICITY the double pole fuses F, F. Ammeters, A, A are insertedin the main circuit of each machine, and sen^e to indicate theamoimt of current generated by each. An automatic sv^-itch orcutout, Ac, Ac, is also shown as being included in the maincircuit of each of the machines,… … ^vwww—vwww^ IG. 687.—Diagram showing method of coupling shunt djTiamos in series. The ends of theshunt coils may be connected to the terminals of their respective machine, or they may boconnected in series as shown. The shunt circuits are represented as being connected to the positi%eand negative…
Electrical engineering
