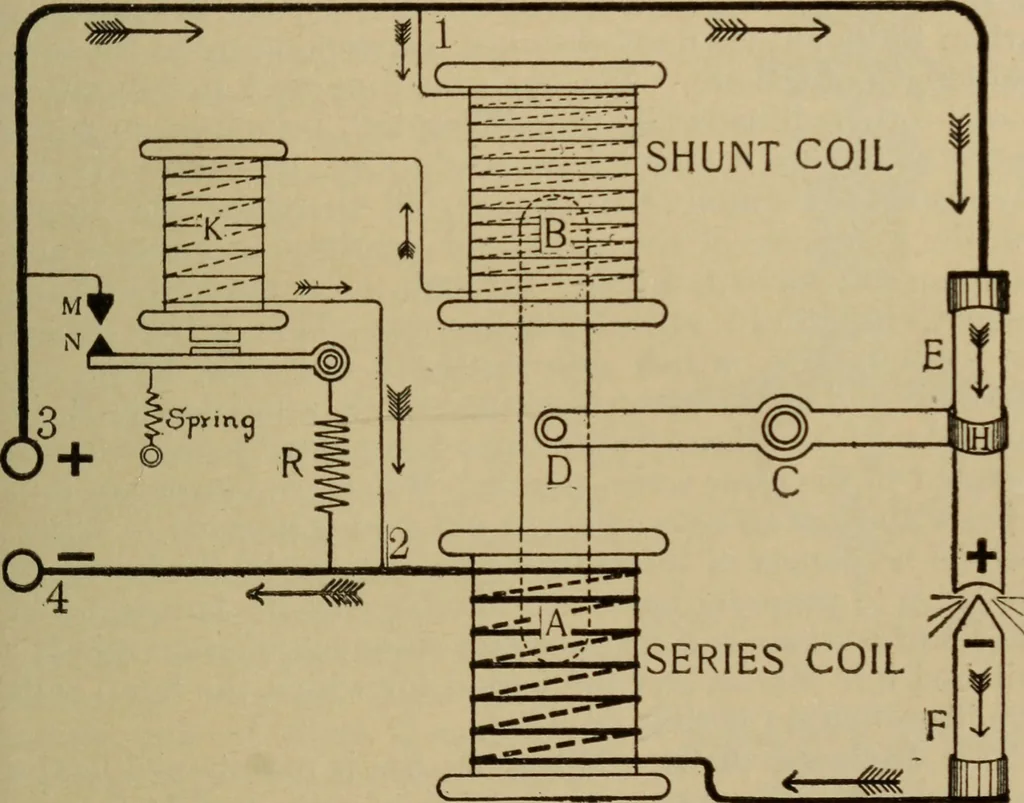

tomatic feeding lamp thecarbons are moved together automatically as they are conburned, so that the length of the gap is maintained constantand consequently the distribution of light is continuous. A simple means for producing automatic feeding is depictedin Fig. 381 and embodies the principle… … Fig. 381.—Diagram of Connections of an Automatic Feed Differential ArcLamp.—Clutch Type Pattern. supply line by the lamp terminal binding posts 3 and 4. Theupper or positive rod, E, passes through a clutch, H, supported] by the horizontal brass lever, DH, pivoted at C, and alsoj fastened to an iron…
