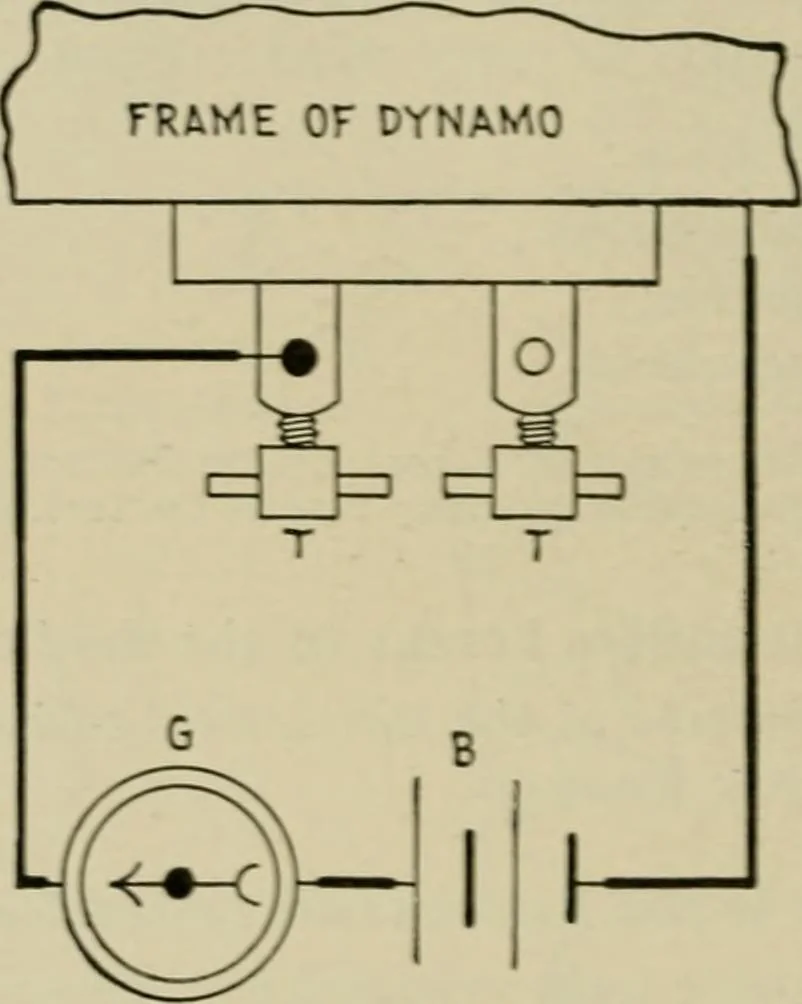

on or exam-ination; therefore, in order to avoid loss of time, it is ad\Tsable to dis-connect the wires if possible, and test each separately for conducri\-ity■wnth a batten, and galvanometer connected, as in fig. 694. If the faultbe not located in the various connections, the magnet coils should… … Fig. 694.—Method of testing dj-namo for short circuits. la the figure, ooe pole of the battel^B is placed in contact with the frame of the xn.aciui:e at a point wliicb Ins ptevioady beenwell scraped and cleaned; the other pole is connected to one of the galvanometer temnnalsas shown. The other…
