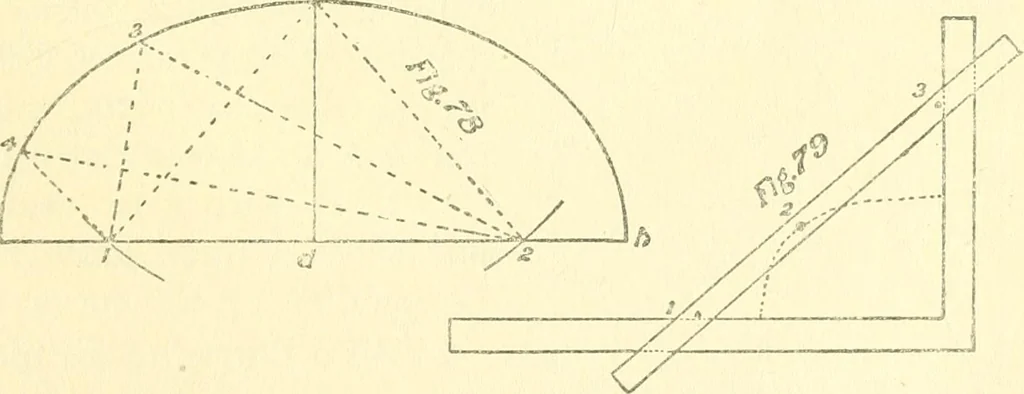

diameter, Fig. 78, as a b; then half the short di-ameter, as c d; then, with c as centre and a d 2iS radius,describe arcs bisecting a b ^i i and 2, at which points drivea nail to fasten the string; then fasten the string at i andstretch to c, at which point place a pencil inside the stringand carry… … Q L>. 74—To Draw an Ellipse with the Square.—Take a strip of wood, as shown in Fig. 79, say %^i, to use asa rule; then drive a nail through the stick about an inchfrom one end, as i; then m.ake the distance between i 2 6o GUIDE AND ASSISTANT equal one-half the short diameter of the ellipse and 2…
