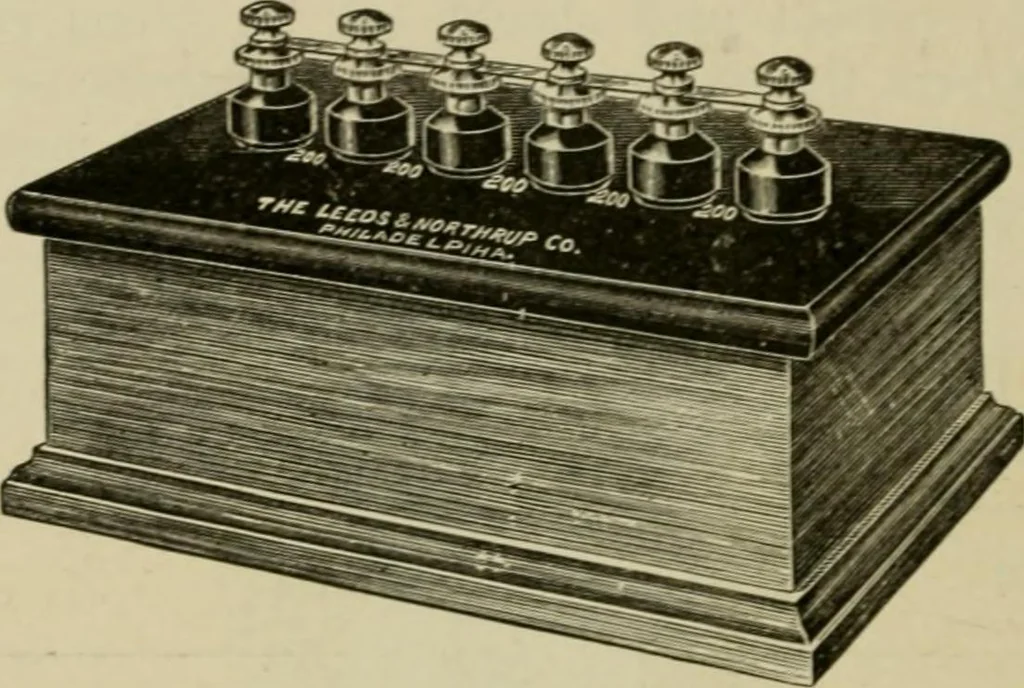

s is a direct deflection method andconsists in determining first the resistance that will deflect theneedle through one division of the scale on a given battery 486 HAWKINS ELECTRICITY current, then with this as a basis for comparison the voltmeteris connected across the unknown resistance whose… … Pig. 561.—Megohm box or set of standard high resistances. The box contains five resist-ances of 200,000 ohms each. The six pillars are petticoat insiilated, the resistances beingplaced between each pair of pillars. There is a double contact post on top of each piUaiso that these can be connected…
