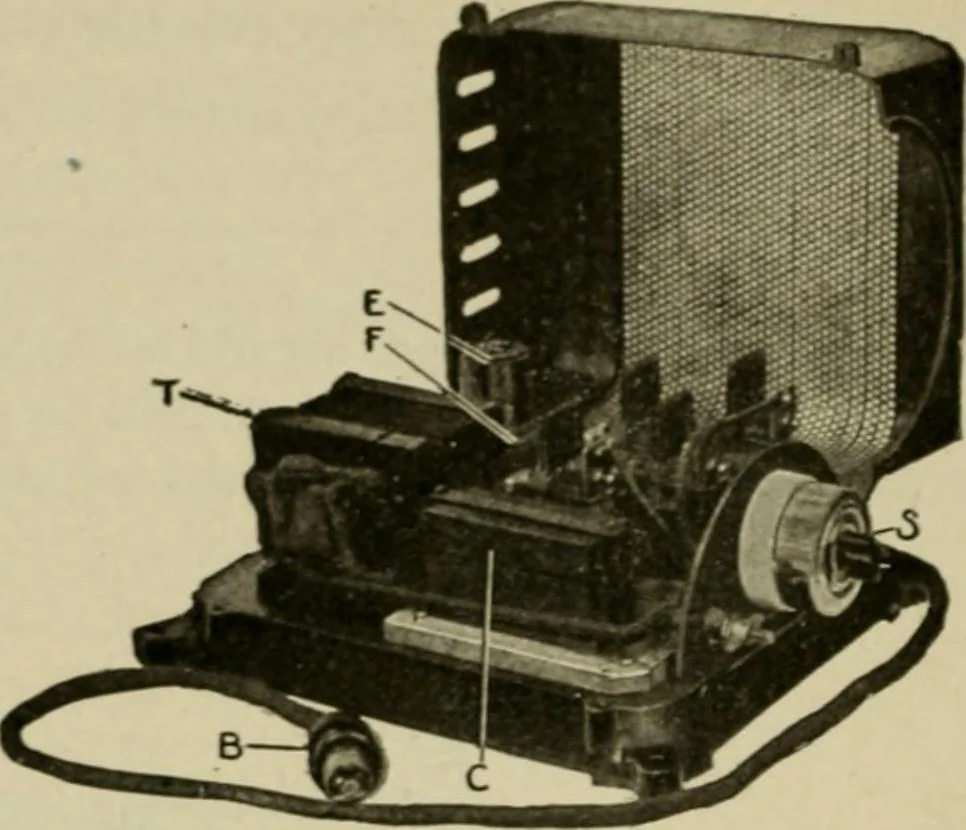

Fig. 1,153.—Permanent connections for Edison rectifier. As shown, the rectifier is connectedto a small switch and cutout. different portions of the glass, is a source of constant troubleand danger. The exclusion of direct sunlight also tends to keep the evapora-tion of the electrolyte bX a minimum.… … ic. 1,154.—Edison Alternating Current rectifier; view with cover open showing parts. B,primary circuit cord; C. condenser; E, primary relay; F, secondary switch; S, alternatingcircuit switch; T, transformer.
