Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 111

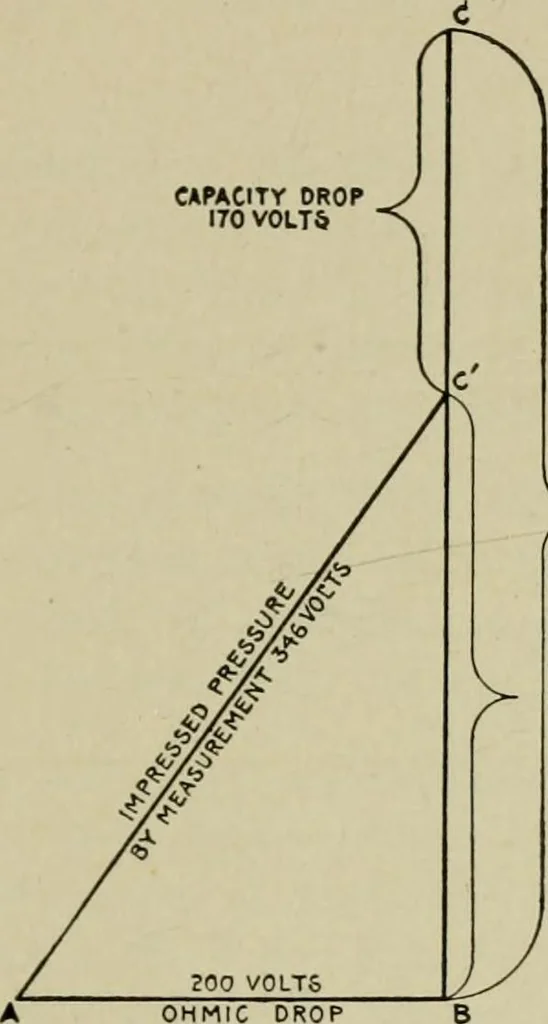

. It is the impedance of a circuit possessing resistance,inductance, and capacity. ALTERNATING CURRENT DIAGRAMS 1,099 Ques. Why? Ans. Because it is that quantity which multiplied by thecurrent gives the pressure, which is in accordance with Ohmslaw. EXAMPLE.—An alternator is connected to a circuit… … V INDUCTANCE DROPf 453 VOLTS RESULTANT DROP OR DROP DUE TO EXCESS CAPACITY. 282 VOLTS OHMIC DROP Fig. 1,342.—Diagram for finding the pressure necessary to be impressed on the circuit shownin fig. 1,341. to produce a current of S amperes. The ohmic drop is E0 = RI = 25 X 8 = 200 volts. The…
Electrical engineering
