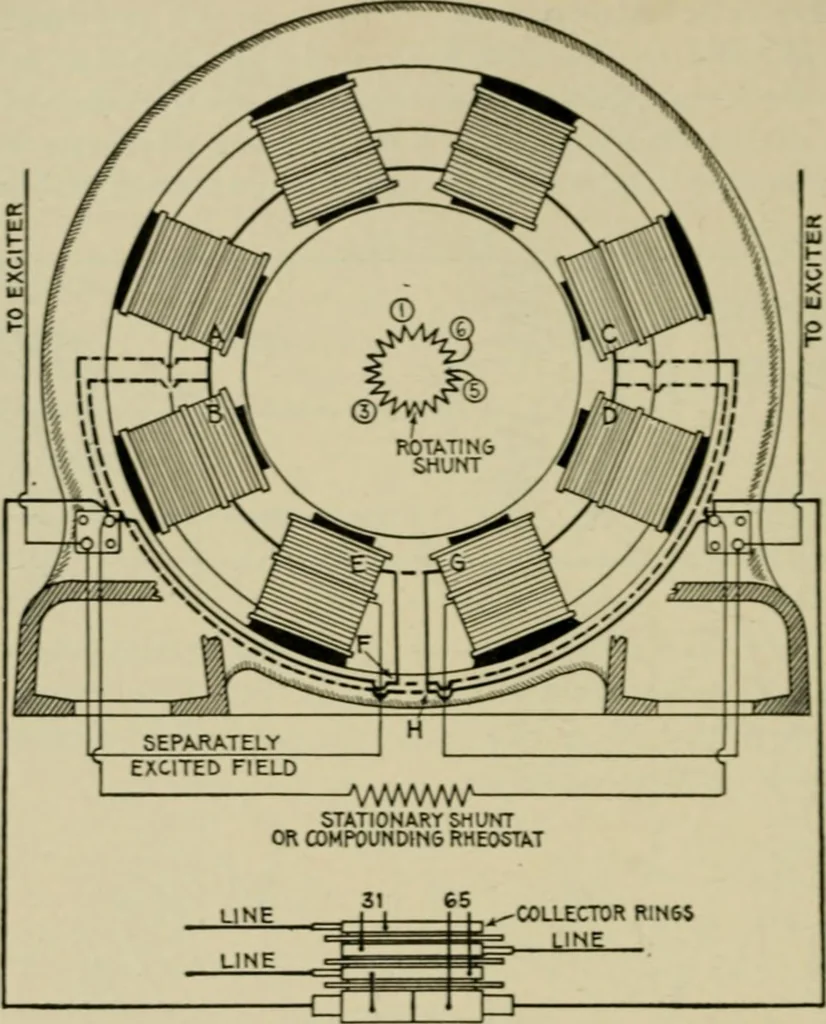

MAIN COIL %%+ FlG. 1.40S.—Diagram showing section of monocyclic alternator armature illustrating thearmature winding. The main coils are wound on every other tooth, and the teazer coilsare placed in quadrature with them, as shown. The monocyclic alternator is a single phase machine providedwith an… … COMMUTATOR FlC 1,409.—Diagram showing connections of General Electric Monocyclic alternator. Por2.300 volt machine, connect as shown by solid lines. For 1.150 volt machine, omit con-nections A to B. C to D. E to F, and G to H. and connect as shown by dotted lines. Thearmature of a standard…
