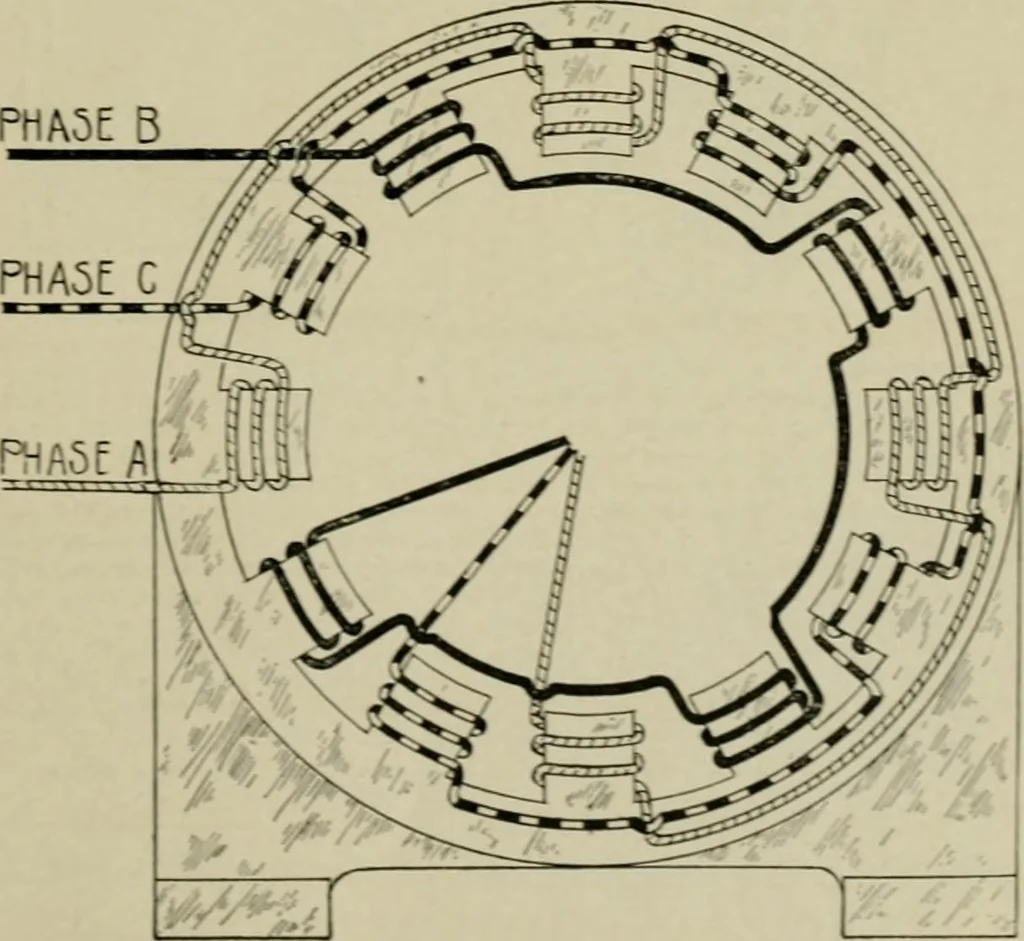

Fig. I.6S0.—Production of a rotating magnetic field by three 1shown is tapped at points A. B. and C. 120° apart, and cphase alternator. As described on page 1,304, a rotatiin a manner similar to the two phase method. PHASE B … Fig. 1.6S6.—Diagram of three phase, four pole Y connected field winding. 1,306 HAWKINS ELECTRICITY At the instant when the current a, flowing in at A, is at its maximum,two currents b and c, each one-half the value of a, will flow out B and C,thus producing a negative pole at A and a positive pole…
