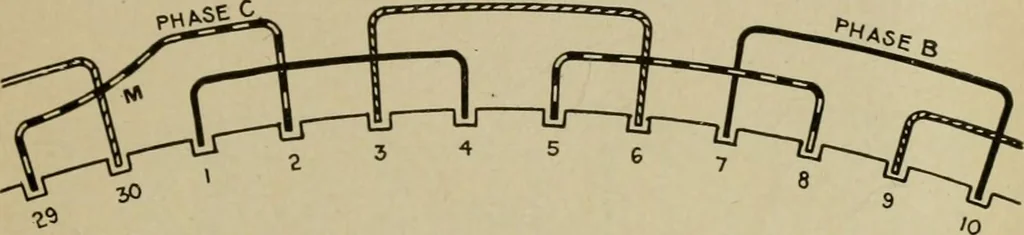

• m—Treatment of coil en Is in two phase, two range windings. In this arrange-ment straight out Hi an.! >ils are used which are placed on the arma-ture as is clearly shown in the illustration. CONSTRUCTION OF ALTERNATORS 1,241 surface of the armature at intervals equal to one-third and… … Fig. 1.53S.—Three phase, 10 pole, 30 slot winding in two ranges. In this winding perfectsymmetry occurs after every four poles. Accordingly in the case of an odd number ofpairs of pole, one of the coils must necessarily be askew going from the inner to the outerrange as at M. Each of the three…
