Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 255

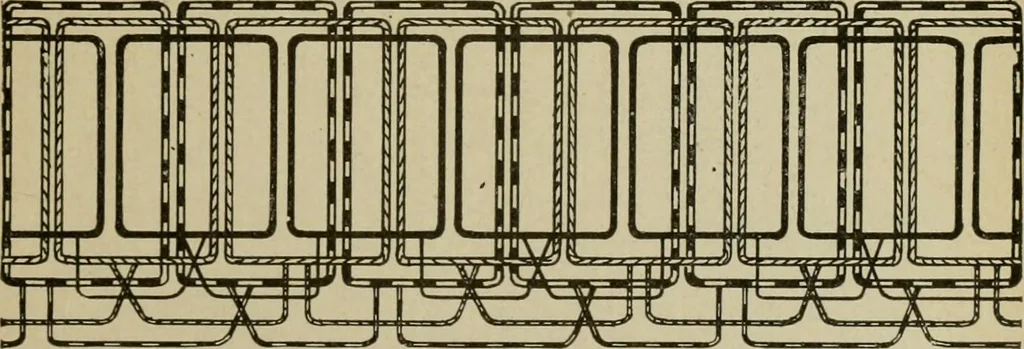

Fig. 1,542.—Three phase winding with half coils. The advantage of employing half coils isthat the ends may be arranged in two ranges as shown. There is one slot per phase perpole, that is, total number of slots =3 X number of poles. Ques. Describe tU*>» two phase star connection. Ans. In this… … Fig. 1.543.—Three phase winding with whole coils. Two sides of adjacent coils come in oneslot. Number of coils per phase =number of poles per phase. Total number of slots =3multiplied by number of poles per phase. Whole coils require the ends arranged in threevanges as indicated. The coils are…
