Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 122

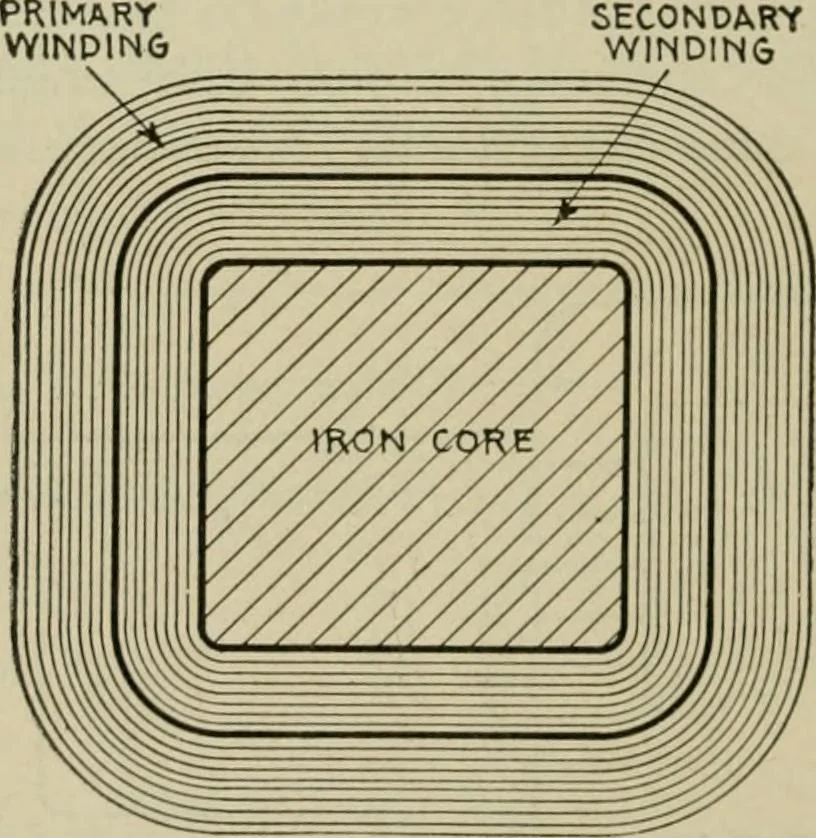

coils one within the other, as shown in cross sectionin fig. 1,918. 1,380 HAWKINS ELECTRICITY The Induced Voltage.—The pressure induced in thesecondary winding will depend on the ratio between the numberof turns in the two windings. For example, a transformer with500 turns of wire in its primary… … FlG. 1,918.—Cross section showing commercial arrangement of primary and secondary wind-ings on core. One is superposed on the other. This arrangement compels practicallyall of the magnetic lines created by the primary winding to pass through the secondarywinding. EXAMPLE.—If ten amperes flow in the…
