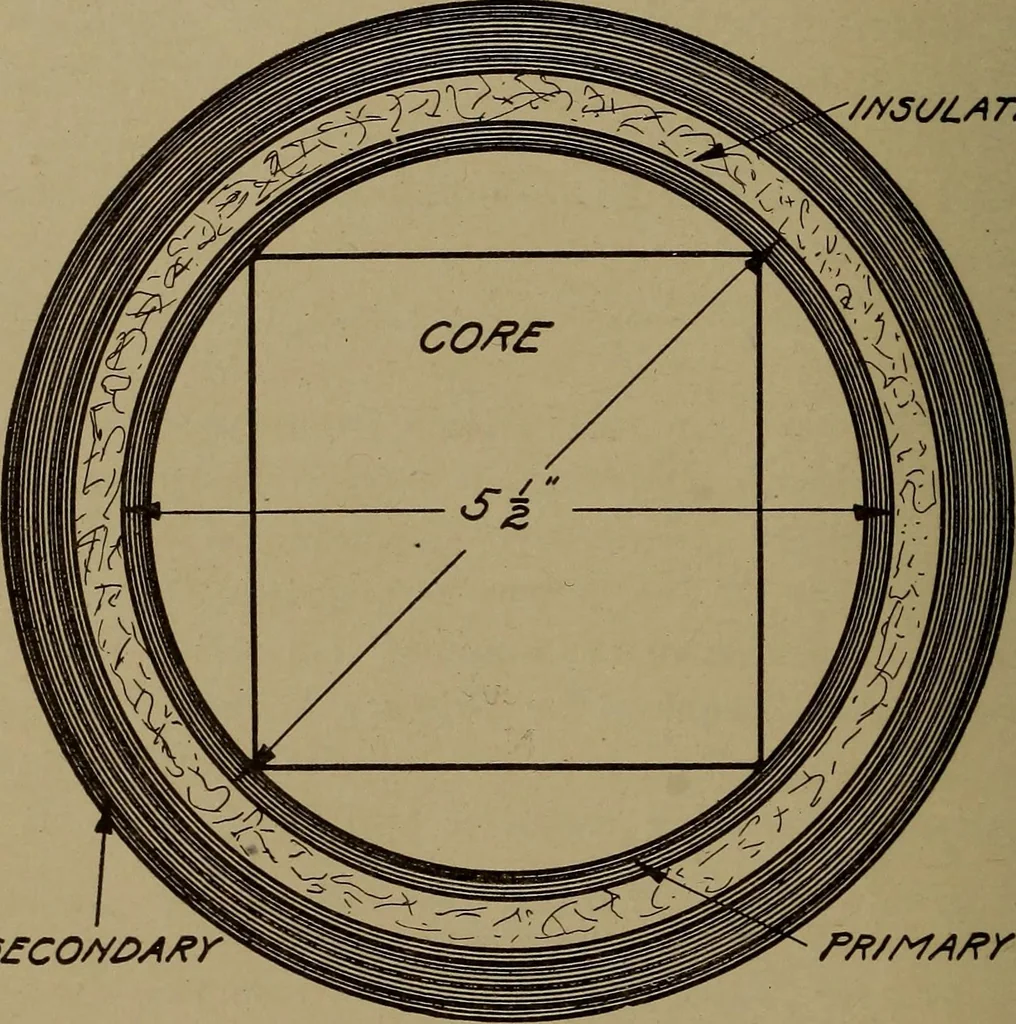

S Considerable space should also be allowed for insulationbetween the primary and the secondary, as indicated in Fig. 41.The length of a mean turn may be computed after the diameterof a mean turn has been decided upon. It may be found neces-sary to make a different assumption as to the length of a… … ^J£CO/VDA/^r p/^/z^A/^r Fig. 41. Cross-Section of Core, Windings, and Insulation 3.1416X7, or 21.9912 inches, say 22 inches. Since the ratio oftransformation is 20 to 1 for the transformer being designed,there would be 20 times as many turns in the secondary windingas there are in the primary…
