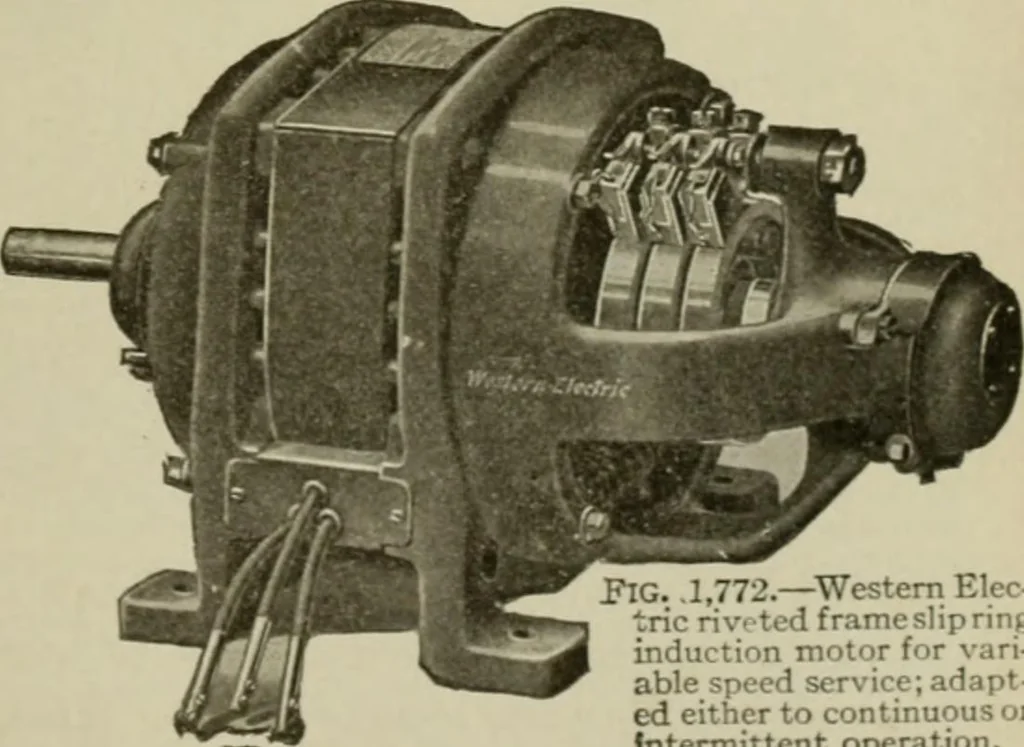

Tig. 1,771.—Richmond slip ring armature as used on motorin fig. 1,770. Ques. Howis the arma-ture windingconnected ? Ans. It isconnected in Ygrouping andthe free endsconnected to theslip rings, leadsgoing from thebrushes to the Fig. 1,770.—Richmond slip ring motor. sistance motor thearmature winding… … PlG. .1,772.—Western Elec-tric riveted framesliprinRinduction motor for vari-able speed service; adapt-ed either to continuous orIntermittent operation. 1,338 HAWKINS ELECTRICITY variable external resistances, these being illustrated in fig. 1,779. Single Phase Induction Motors.—The general utility…
