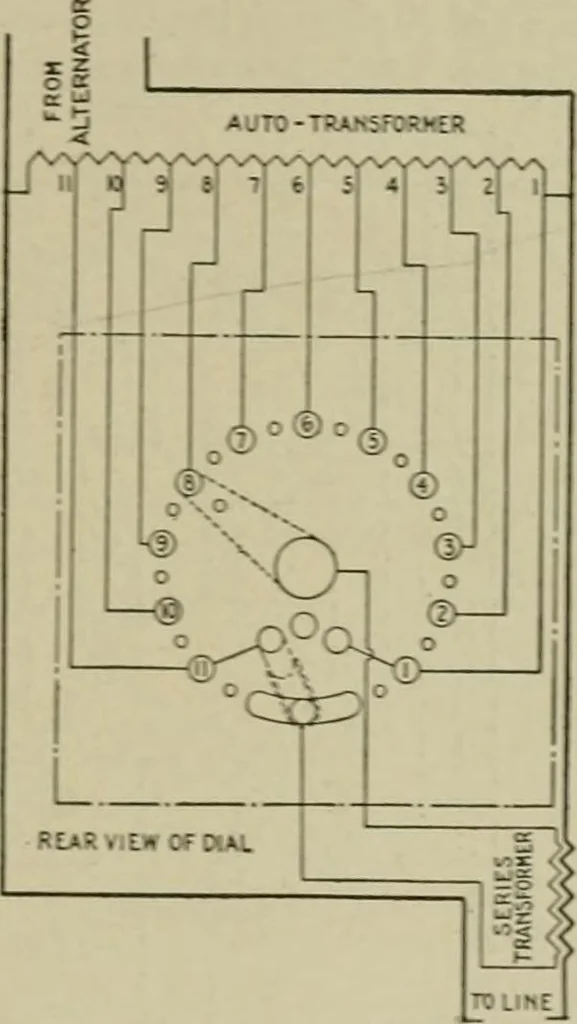

sformer is similar to a standard transformerexcept that the secondary winding is provided with a numbeiof taps leading to the contact of the dial switch as shown inthe diagram fig. 2,437. REGULATIXG DEVICES 1.737 Ques. What modification is made to adapt dial regu-lators for heavy current? Ans. A… … Fig 2.436.—Diagram of connections for Westinghouse 11 point dial, series transformer andauto-transformer. The auto-transformer has a number of taps connected across theline, the series transformer is placed in series with one side of the line, and connected toa dial, as shown. small in comparison…
