Electricians' operating and testing manual; a hand book for men in charge of electrical apparatus, repair men, trouble men, lamp trimmers, and electricians generally (1916)
Horstmann, Henry Charles, Tousley, Victor Hugo, 1875- joint author · Chicago, F.J. Drake & co · leaf 325

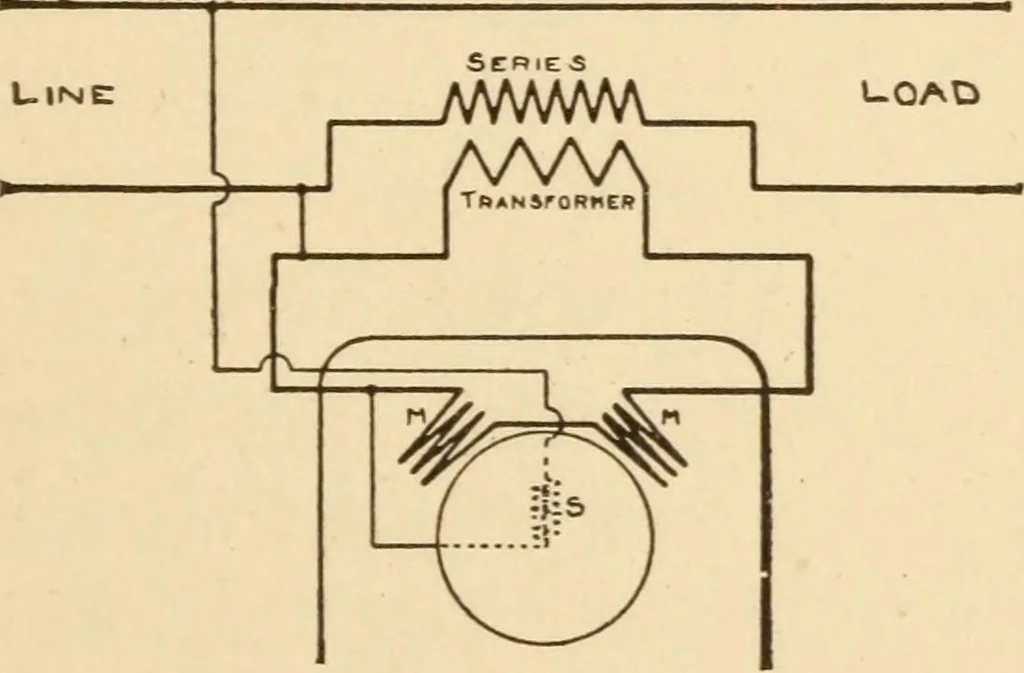

Figure 189 mains through the meter. A small current trans-former is connected in series with one of the mains,the secondary of the transformer being connected to … Figure 190 the meter as shown in Figures 189 and 190. If the me-ter is used on a primary circuit or on any circuit wherethe voltage is high a small potential transformer maybe connected across the mains and the shunt field con 320 Operating ana Testing nected directly to the secondary as shown in…
Electrical engineering · Electric testing
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
