Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 234

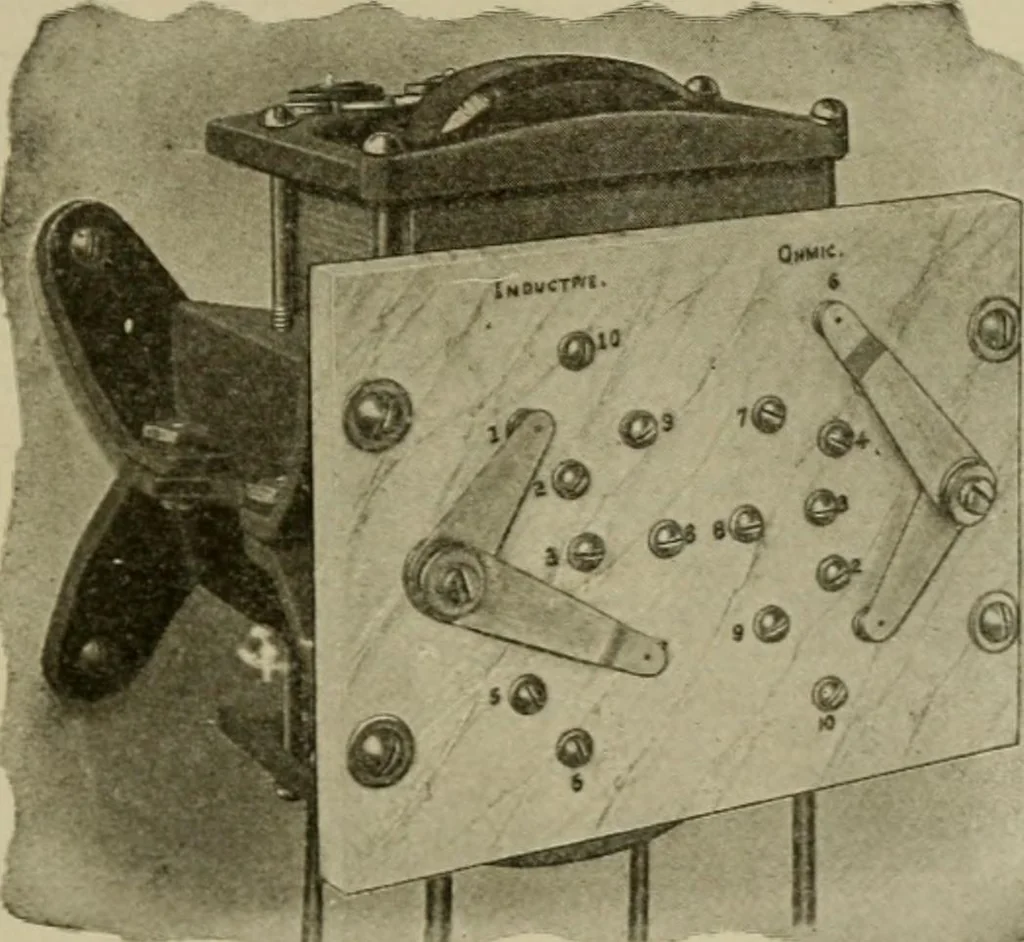

of one volt each,giving a total combined drop at maximum setting of about 17 volts. REGULATING DEVICES 1,753 Ques. How can the voltmeter indicate the pressureat the center of distribution? Ans. If the amount of inductance and resistance be properly-adjusted, there will be produced a local circuit… … Fig. 2.461.—Westinghouse line drop compensator. For single phase circuits, one compen-sator and one series transformer, that is the instrument as listed with transformers, willgive correct indications for a single phase circuit. The same voltage transformer servesfor both voltmeter and compensator.…
