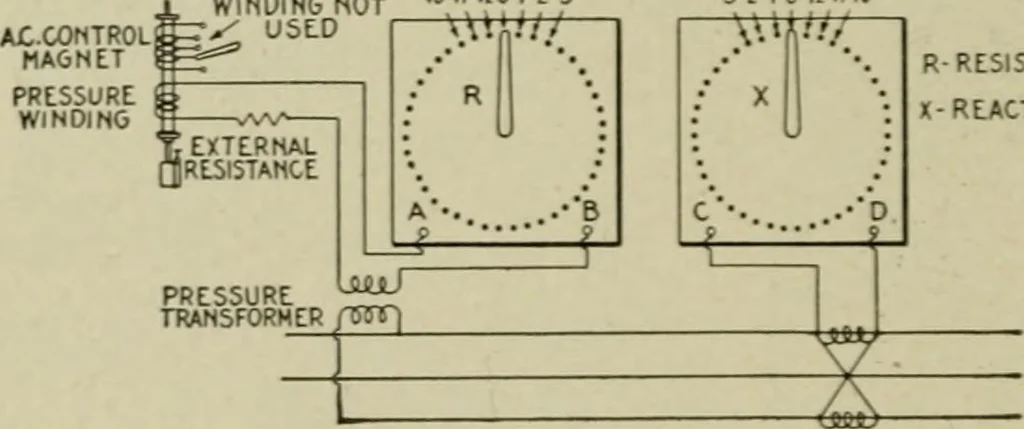

Ail FIELD ■....„„.„„RHEOSTAT ALTERNATOR CURRENT TRANSFORMERS COMPENSATINGWINDING NOT 4041420 I 2 i S 2 I O42«l40 R- RESISTANCEX-REACTANCE … Pig. 2,462.—Diagram of automatic voltage regulator, using line drop compensator. For ordinary installations the compensating winding on the alternating current control mag-net is connected to a current transformer in the main feeder. A dial switch is pro-vided by which the strength of the…
