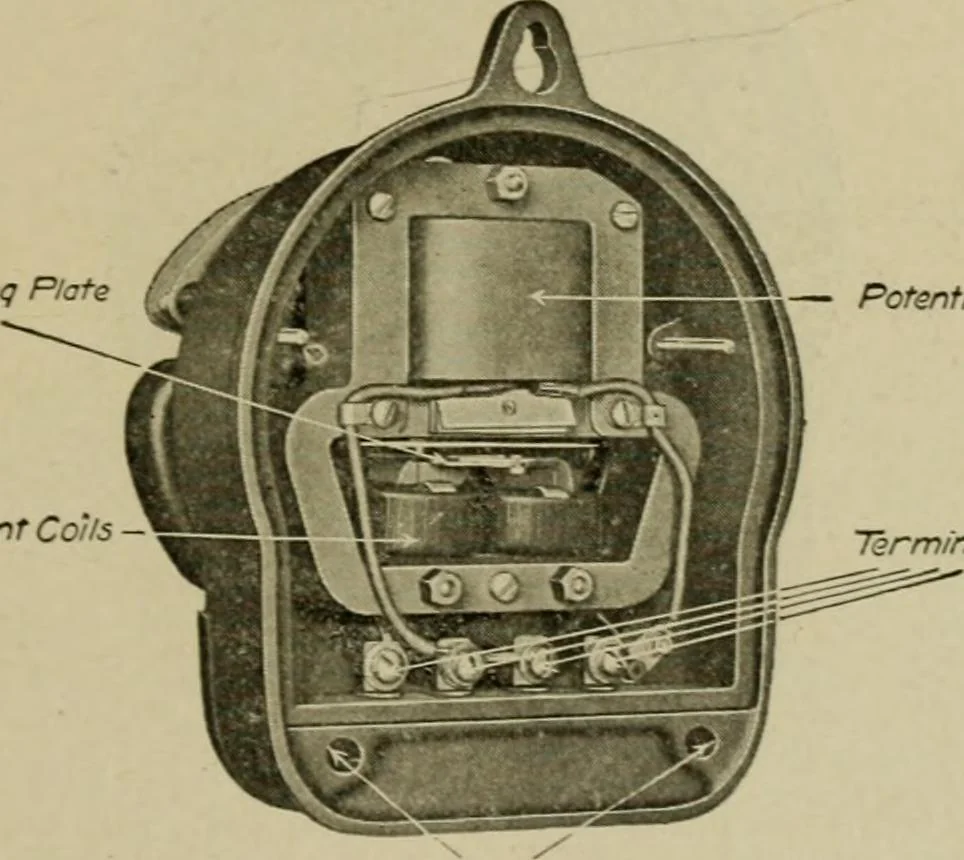

e to clamp it to the meter frame. INDICATING DEVICES 1,809 across its terminals. Therefore, when the current in the circuitis in phase with the voltage (100 per cent, power factor) thecurrents in the meter coils are displaced almost 90 degrees withrespect to each other. Ques. How is this angle made… … Terminals holes for Mc^.nTmq Screws Fig. 2.543.—Rear view of Fort Wayne single phase induction watthour meter with backcover plate removed. The pressure and current coils and their respective cores lie behindthe main frame of the meter. This complete electromagnetic unit can be removed as awhole…
