Hawkins electrical guide. Questions, answers & illustrations; a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833- · New York, T. Audel · leaf 42

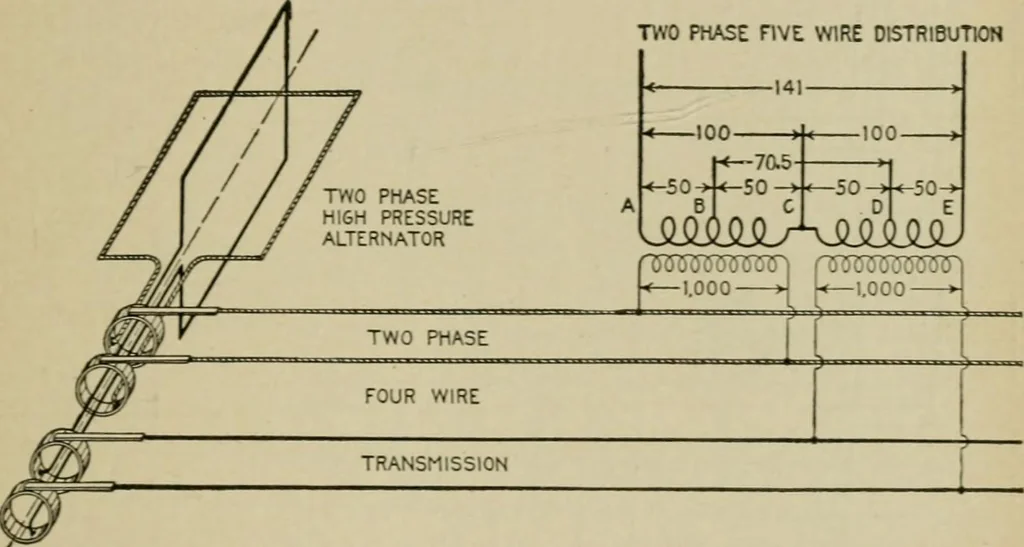

down ratio of10 : 1, the pressure between A and C and C and E will be 100 voltsand between the points and the connections B or D at the middle ofthe secondary coils, 50 volts. The pressure_across the two outer wires A and E is, as in the threewire system, -\ 2 or 1.41 times that from either outer… … Fig. 2,1.38.—Two phase four wire transmission and five wire distribution system. The rela-tive pressures between the various conductors are indicated in the diagram. Three Phase Systems.—There are various ways of ar-ranging the circuit for three phase current giving numerousthree phase systems. 1.…
