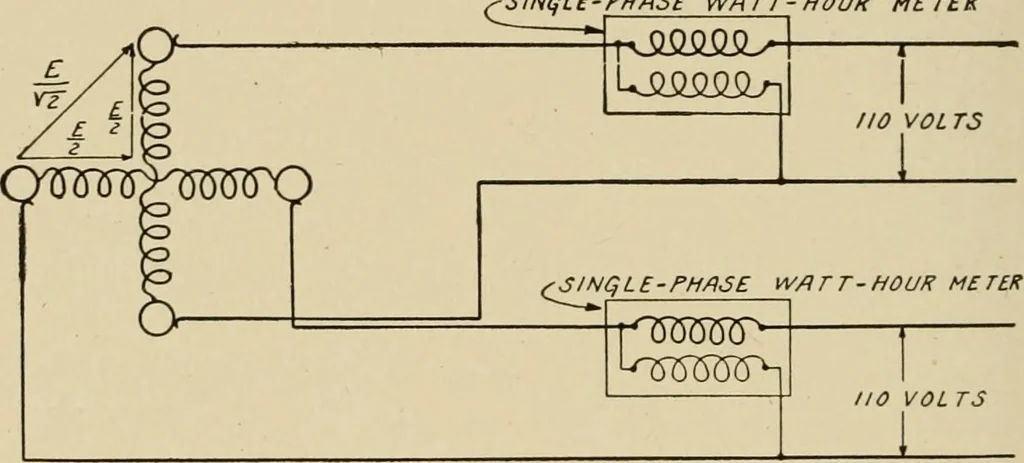

total power in watts; E is the electromotive forcein volts across each phase; and I is the intensity of current in am-peres in each phase. Two-Phase Three-Wire. In a two-phase three-wire circuit, thecurrent in the common wire is equal to the vector sum of the currentsin each phase. In a balanced… … Z-4 4-W//?£ BflLMNCED OK CCNERflTOK UNBfiLRNCED LOflD Fig. 77. Two-Phase, Four-Wire Interconnected Circuit with Two Watt-HourMeters Connected in phase. The potential between the two-phase wires will be thevector sum of the two potentials which differ in phase by 90 degrees,and consequently will be…
