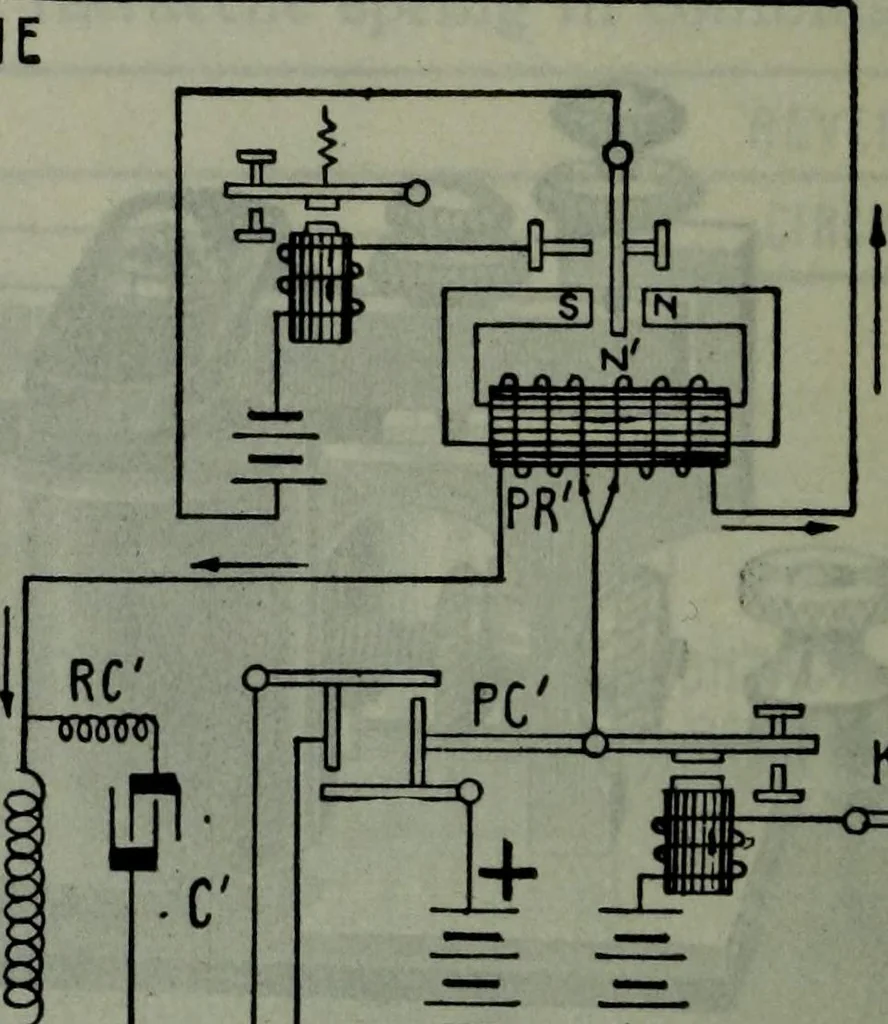

MAIM LINE fPT|_ * J :§:b Ra R/7 … if jr-K IT r-=- t Fig. 3,084.—The battery polar duplex system. When the resistance of the main line is balancedby the resistance of a set of adjustable coil in the rheostat Ra of the artificial line, thecurrent will divide into two equal parts at the polarized relay, and passing around thecores in…
