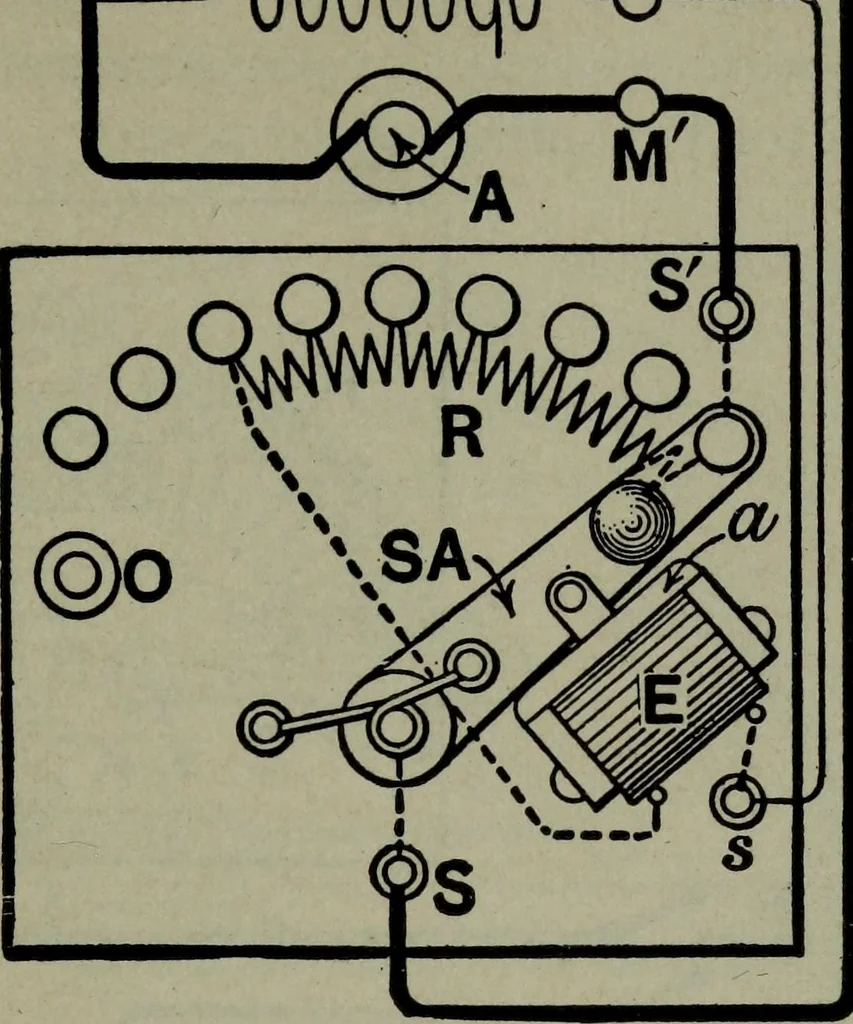

main current flowsthrough it. This device constitutes the no voltage release, and ensures that all the resistanceis in circuit every time the motor is started. i. Ques. How is a starting box connected to a motor? Ans. In series. Ques. Why should a starting box be used with a motor? Ans. If the line… … Fig. 495.—Starter with no voltage release for a shunt motor. The terminals of the motor areat M, M, m, and those of the starter at S,S, s. The lever SA is shown in the on position.The current enters the motor at the terminal M, and there divides, part going through thefield coil F, and the main…
