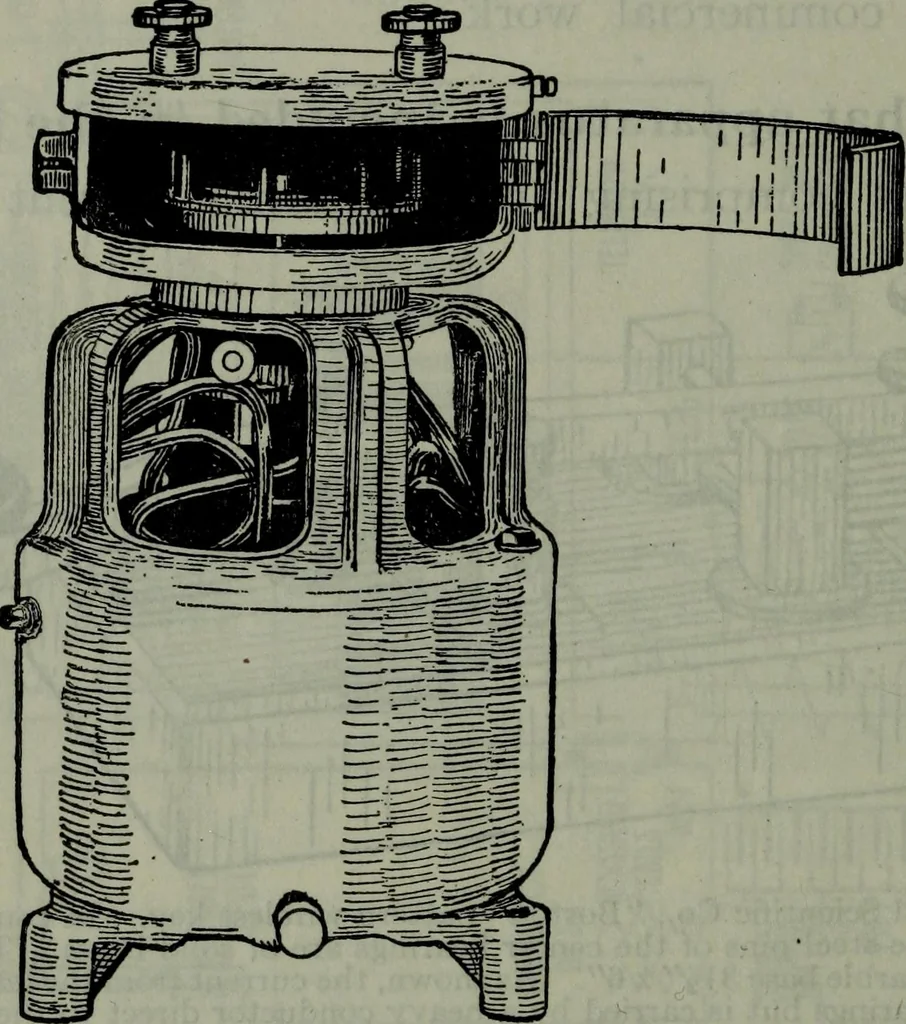

which conveydirect current into the motor. On the generator end of the shaftwhereon are mounted the armature coils of the generator which cutsthe lines of force between the field magnets and conveys alternatingcurrent to the ring contacts, are the brushes which give out the alter-nating current.… … Fig. 3,136.—Marconi ^ kw. converter with disc discharger. This rotary converter is likea dynamotor turned on its side. The shaft runs horizontally, being placed in a verticalposition and well protected from wear by bushings on the lower end which carries theweight of the armature. On the upper end…
