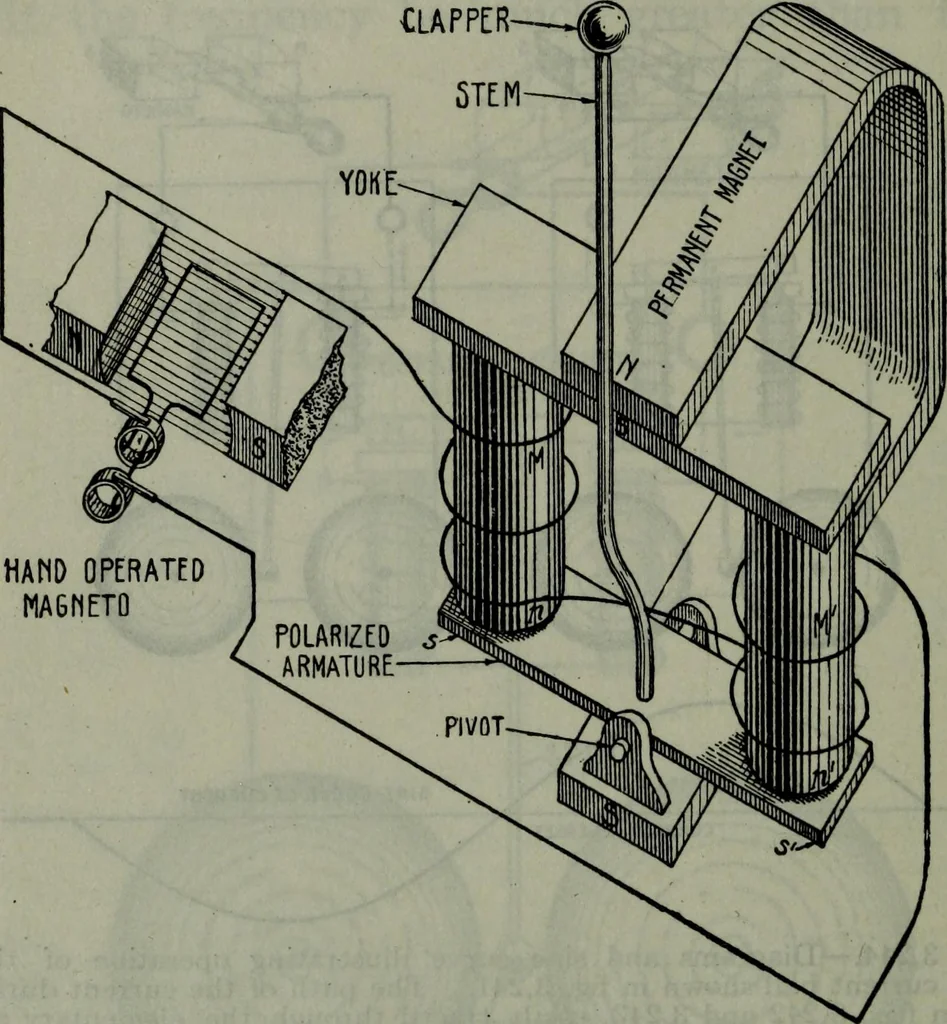

ion. Ans. In fig. 3,245, the effect of the permanent magnet is tomagnetize the magnet cores of the electromagnet and the 2,368 HAWKINS ELECTRICITY armature by magnetic induction. Thus, the N pole of the per-manent magnet induces south polarity 5 at the middle part ofthe yoke and north polarity n, n… … Fig. 3,245.—Elementary alternating current bell polarized by magnetic induction. Theletters N and S represenc the permanent magnet poles, and the italics n and 5 the polesinduced by the permanent magnet. The kind of current on which the bell will worksatisfactorily is suggested by the elementary…
