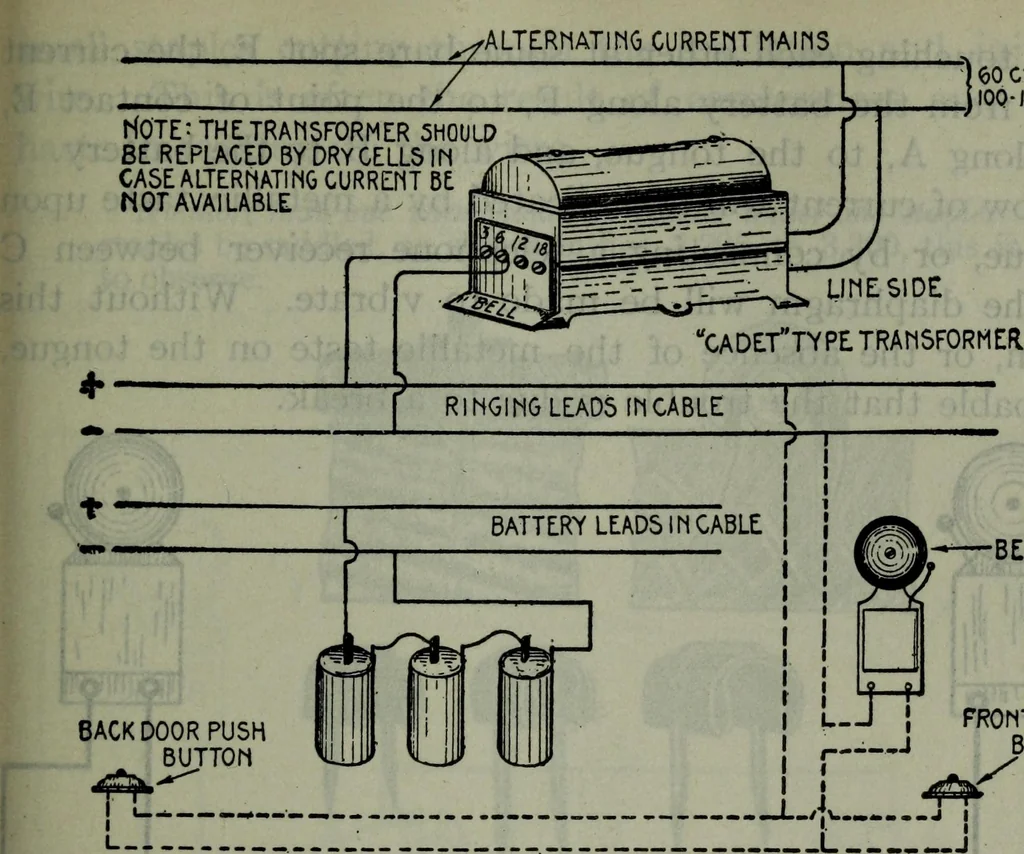

or an apartment house. Faults in Bell Circuits.—Faults, other than those caused byweak push and bell springs, dirty and loose contacts, and im-poverishment of battery current are generally due to crossed wires.or broken wires. Fig. 3,294 shows the method of making asimple test for a cross.… … 60 CYCLEI00-J25V. BELL FRONT DOOR PU5HBUTTON FlG. 3,293.—Diagram showing method of connecting a bell ringing transformer for ringinginter-phone bells and door bells. Dotted lines show wiring for door bell using samesource of ringing current.
