The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 579

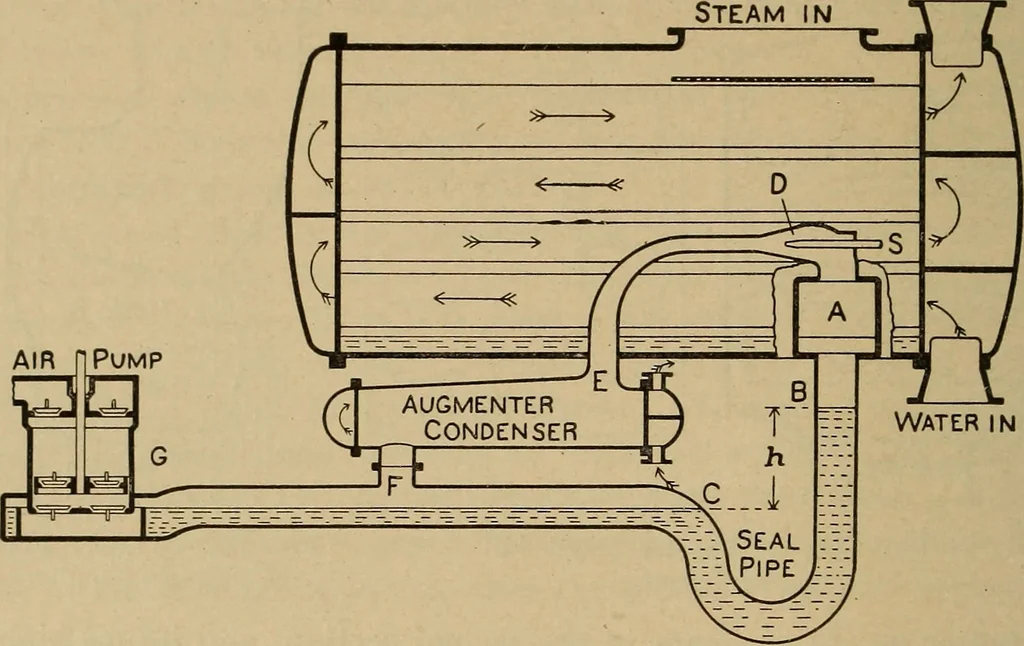

d the steam current sidewise at entrance, and then have itflow squarely across and among the tubes. 564 SUNDRY STEAM APPLIANCES. [Chap. XI. ejector action at D, drawing air and vapor from the main condenser.The small auxiliary condenser cools the ejector discharge, liquefying allexcess of steam,… … Fig. 398. — The Parsons Vacuum Augmenter. steam consumed by the ejector is said to be about one per cent of thenormal consumption of the turbine. As more or less special types may be mentioned the following: The feed-heater condenser, in which the boiler feed is passed througha top section of…
Steam-engines · Steam-turbines
