Hawkins electrical guide ... : questions, answers & illustrations : a progressive course of study for engineers, electricians, students and those desiring to acquire a working knowledge of electricity and its applications ; a practical treatise (1914)
Hawkins, N. (Nehemiah), 1833-1928 · New York : T. Audel & Co. · leaf 357

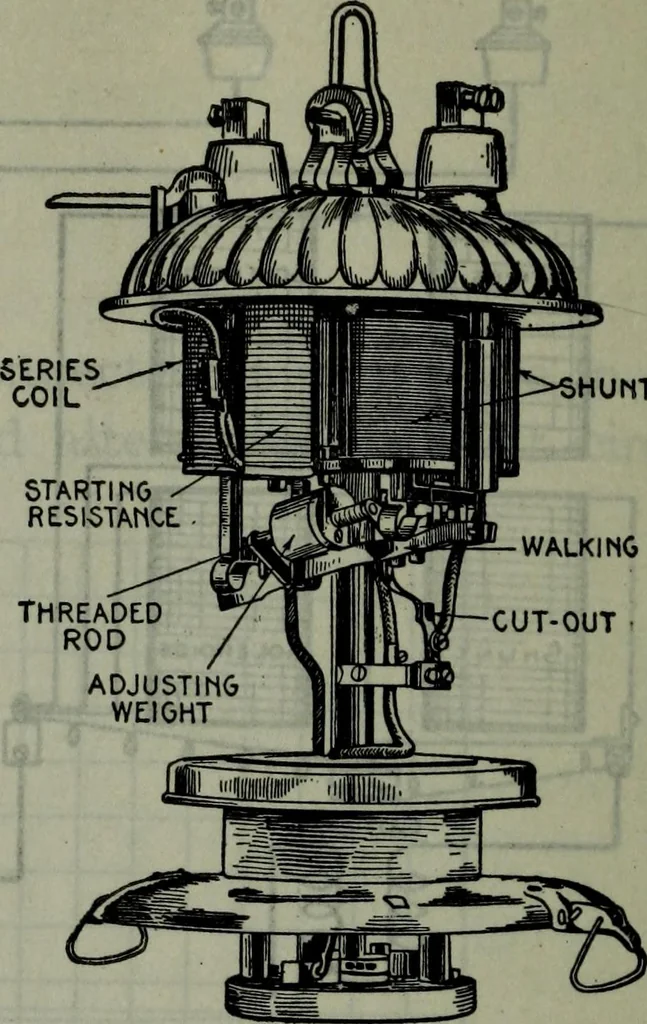

SHUNTCOIL ua I < ADJUSTINGWEIGHT … HUNT C0R6 WALKING BEAMCUT-OUT Figs. 3,359 and 3,360.—Westinghouseseries circuit, differential controlalternating current arc lamp. Theseries and shunt solenoids are con-nected to a walking beam, to whichis fitted an adjusting weight and adash pot. The coils of the sole-noids are wound on spools…
Electrical engineering
