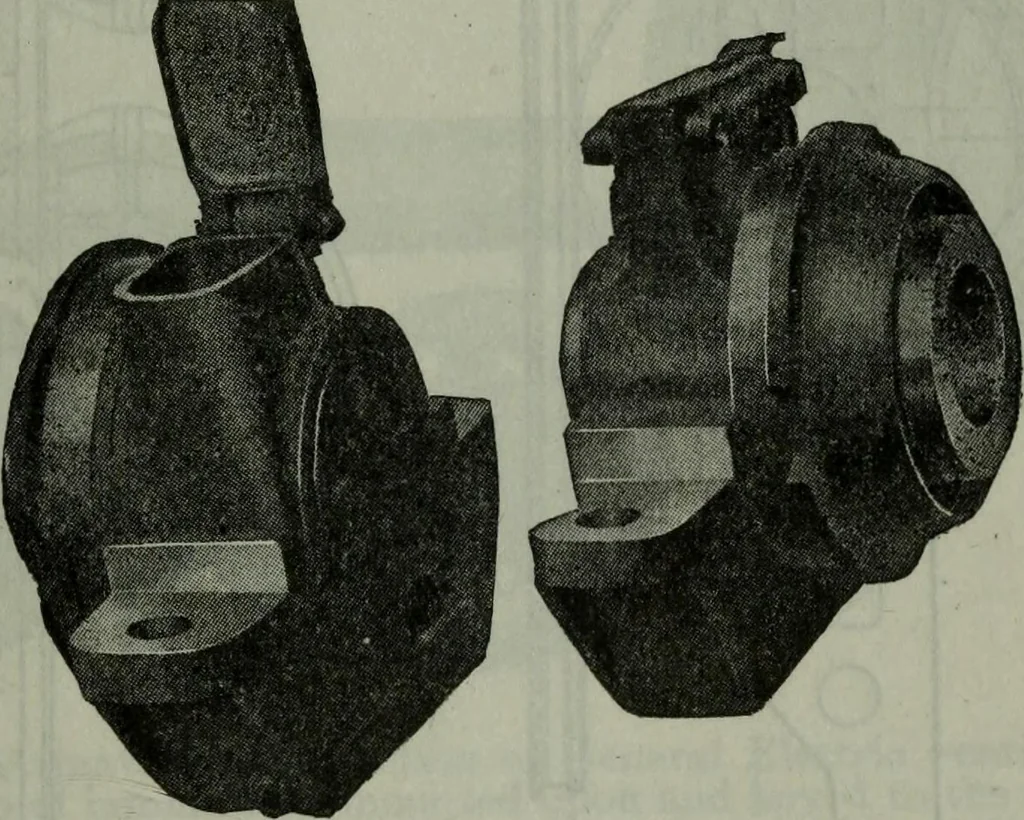

the bearings of the weightof the motor. The total weight of the motor is hung by lugs on eitherside from a longitudinal horizontal bar which at the back end is springsupported from lugs on the arm which carries the axle bearing and atthe front end by a cross and beam truck frame. This type of… … Figs. 3,527 and 3,528.—Frame heads for General Electric split frame motor. These heads areof the solid type and special provision is made to secure good lubrication. The object of nose suspension is to distribute the weight of themotor between the car axle and the truck. This is the most…
