Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 772

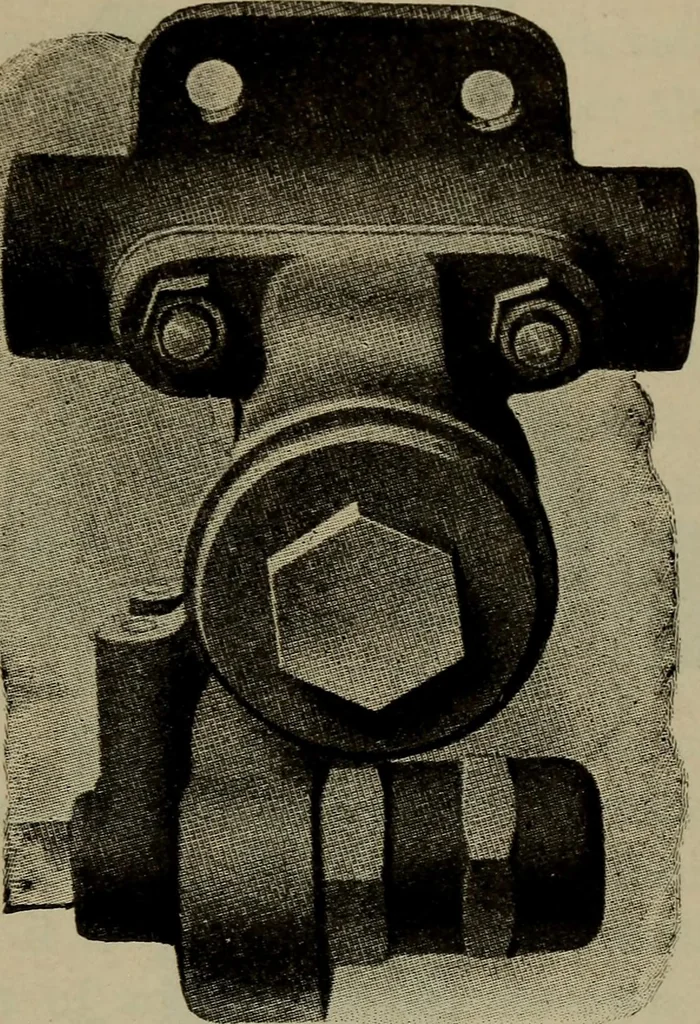

iston-SpringTip; 8, Supply-Valve Piston; 9. Piston Packing Ring;10, Supply Valve; 11, Supply-Valve Spring: 12, Regu-lating-Valve Cap; 13. Regulating Valve; 14, Regulating-Valve Spring: 15, Diaphragm: 16. Diaphragm Ring; 17,Diaphragm Spindle: 18, Regulating Spring; 19, SpringBox; 20, Upper Stop; 21,… … FIG. 320. REDUCING VALVE tion of which is the same as the feed valve just described,with the exception of the adjusting feature, this valvebeing designed for single adjustment only. THE PUMP GOVERNOR. Fig. 321 shows a sectional view of this governor inits normal position. By reference to the piping…
Locomotives
