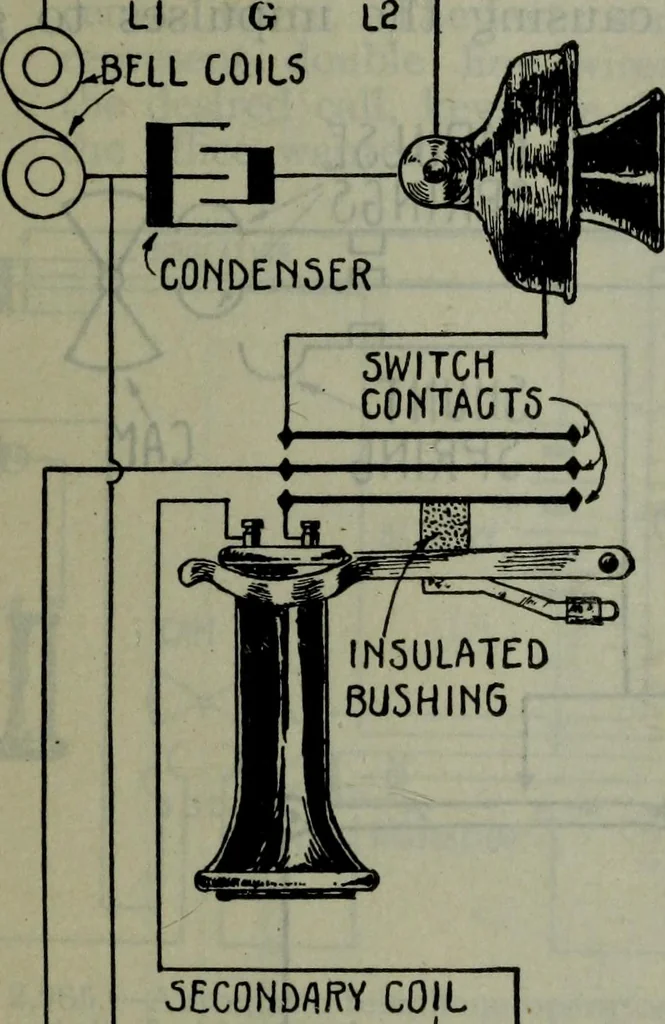

. 2,965the operators set, and fig. 2,966 shows how a coin machine is operatedin connection with the automatic system. Ques. Does the automaticresidence inter - communi-cating system differ from thecentral automatic system? Ans. Yes, although both areoperated with self-restoring in-ter-communicating… … SECONDARY COIL n/wwp PRIMARY COIL7 Fig. 2,963.—Wiring diagram of policesignal box, showing the bell and con-denser connected as usual across the linebetween L2 and G posts. The primary-coil is connected between its line andmiddle switch hook contact, the second-ary coil between the receiver and…
