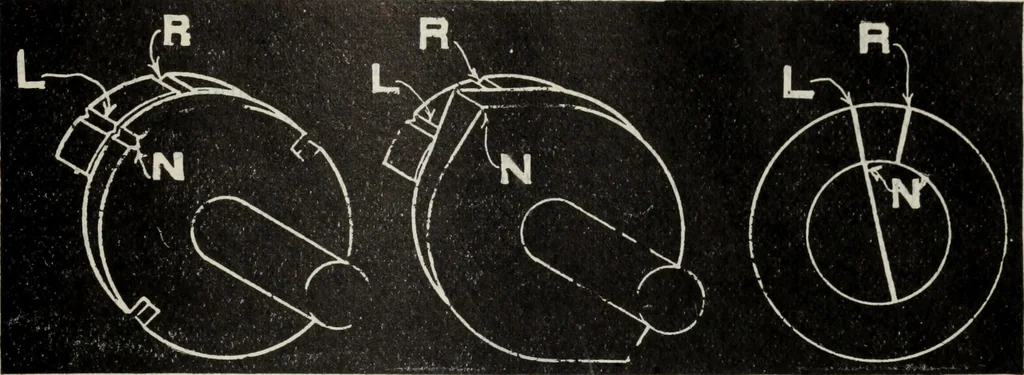

o be marked, and after thismarking is once determined all key ways may be cut in proper relation to the marked tooth,thus making all magnetos on the same type of engine interchangeable. These magnetosare usually driven at engine speed, but may be driven at other speeds. To meet these conditions,… … Figs. 3,963 to 3,965.—Timing Sumter low tension magnetos. Type Imp is timed as infigs. 3,963 and 3,964, the end of shaft and bearings being marked as in fig. 3,965. Allother Sumter magnetos are timed as shown in figs. 3,963 or 3,964. Some machines havethe notched disc as per fig. 3,963; others, the…
