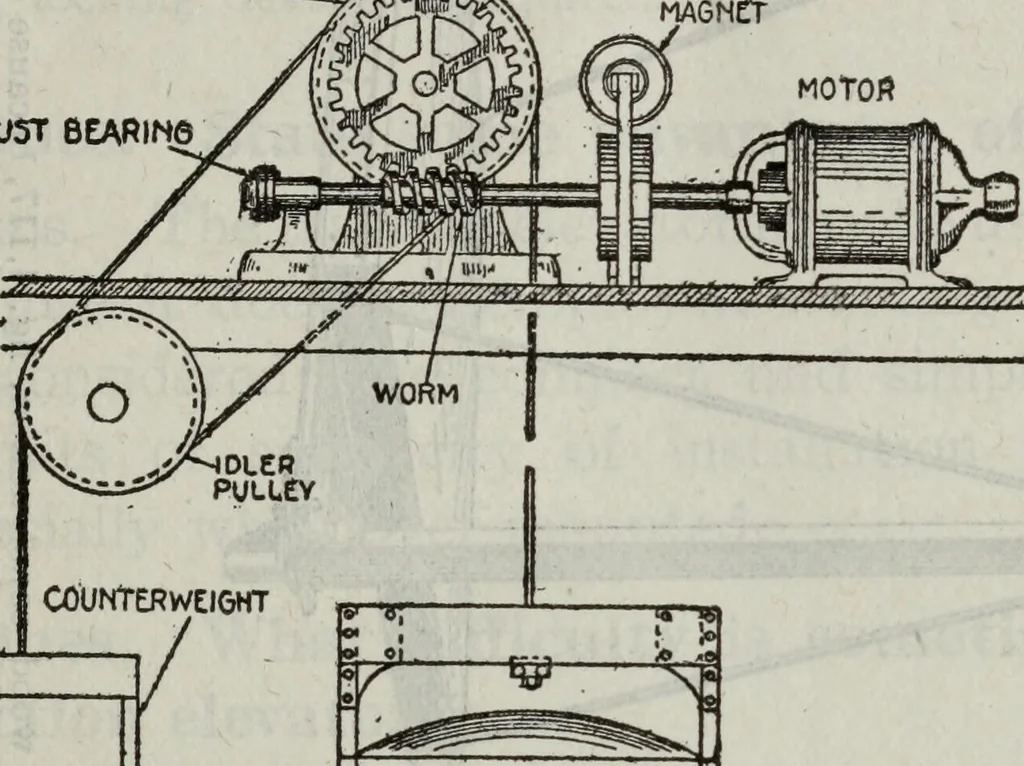

fig. 4,115.A third form of trac-tion elevator knownas a multi-reductionor worm drive isshown in fig. 4,116,the essential featuresof each being men-tioned under the il-lustrations. By comparingthe three figures itis obvious that thedirect drive machine(fig. 4,114) is suit-able for high speedservice;… … U Z2 CAR ^/M^/^^ FlG. 4,116.—Diagram of an overmounted traction elevator with multi-reduction or wormdrive. The traction feature is identical with fig. 4,115. Attached to the driving pulleyis a gear which meshes with the worm underneath, the latter being direct connected to themotor. Clearly, the…
