An elementary book on electricity and magnetism and their applications (1919)
Jackson, Dugald C. (Dugald Caleb), 1865-1951, Jackson, John Price, b. 1868, Black, Newton Henry, b. 1874 · New York, The Macmillian Co · leaf 647

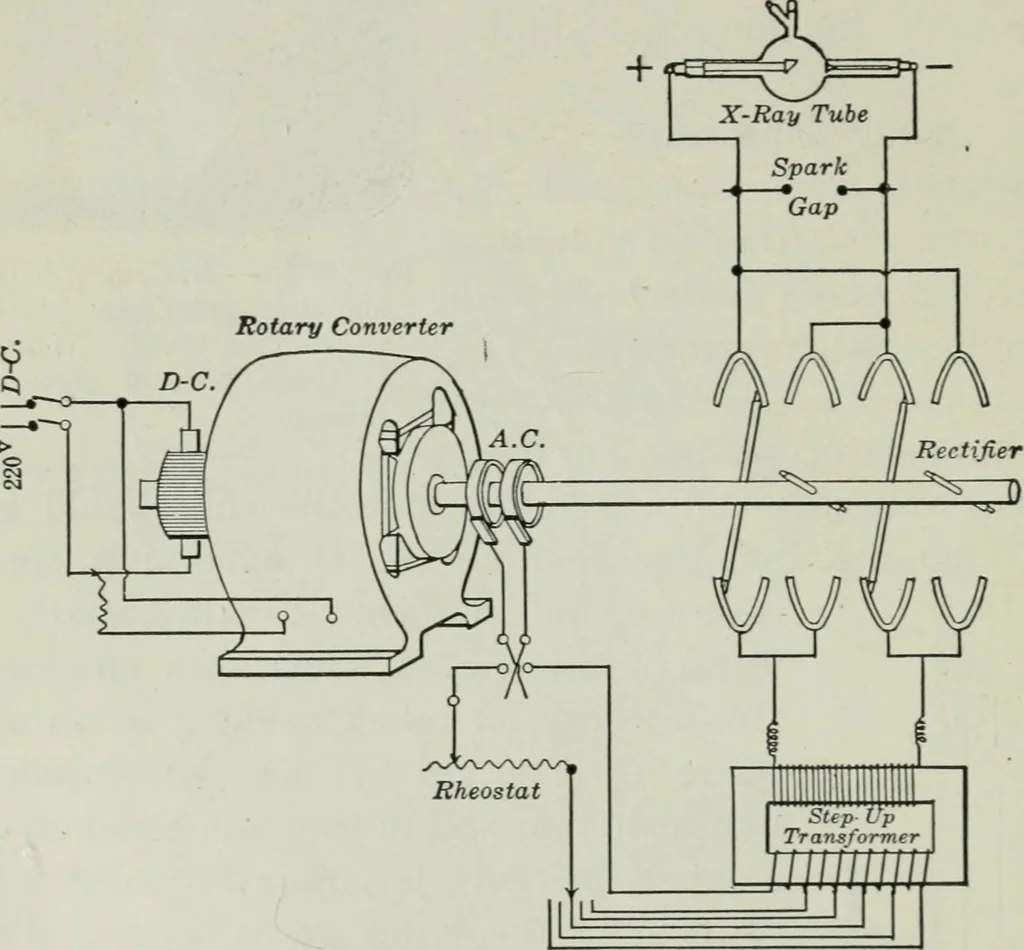

as to the mode of action of this break, but the interruptions areconceded to be extremely rapid. A Fig. 433.—Wehneltelectrolytic inter-rupter with plati-num anode. 576 ELECTRICITY AND MAGNETISM For permanent installations the high-tension transformer (Fig.434) is pretty generally used now in X-ray… … Fig. 434. — Connections of a modern X-ray apparatus. ing current from the secondary of the transformer. To securethe perfect synchronism which is essential for rectification, thecommutator is mounted on the same shaft as the alternator.The resulting current is not steady but pulsating, and can…
