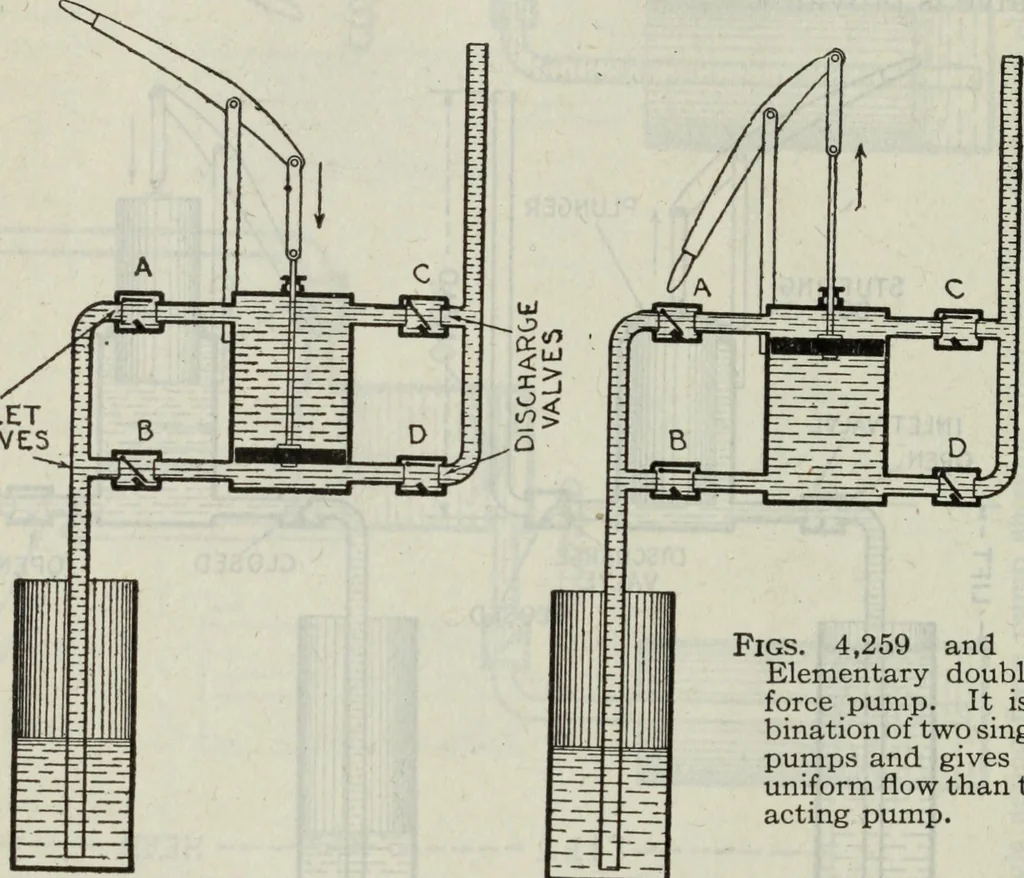

, suchas closed cylinder, plunger, and only two valves. 2,978 HAWKINS ELECTRICITY In operation during the up stroke water fills the cylinder, inlet valveopens, and outlet valve closes, as shown in fig. 4,257. During the downstroke, the plunger displaces the water in the barrel, forcing it… … INLET Halves Figs. 4,259 and 4,260.— Elementary double actingforce pump. It is a com-bination of two single actingpumps and gives a neareruniform flow than the singleacting pump. The word plunger is very frequently used erroneously for piston evenby those who ought to know better., Double Acting…
